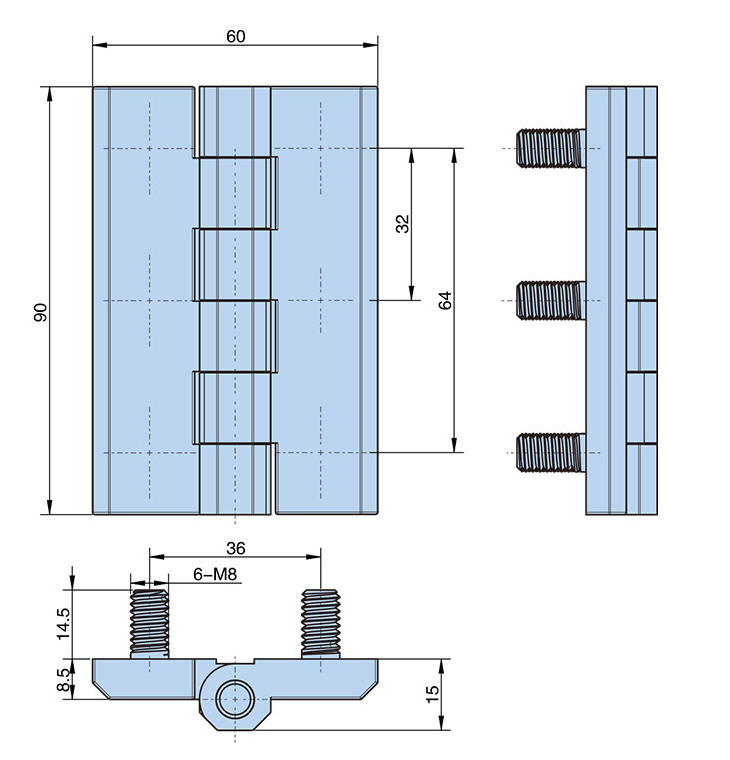

KL-051-1A

1.主体材质:锌合金动、静铰链，分不锈钢和镀镍钢销子及镶嵌螺钉2.表面处理:喷无光黑3.备注:转动约180°

PDF下载 2D下载 3D下载


1.Main material: Zinc alloy dynamic and static hinges, divided into stainless steel and nickel plated steel pins and embedded screws.

2.Surface treatment: spray matte black.

3.Remarks: rotate about 180 °

型号 Product no.
产品单重(g)Weight装箱数Lot
KL-051-1A300
