KL-055-1
KL-055-2
1.Main material: stainless steel
2.Surface treatment: wire drawing
3.Remarks: Rotation is about 180 °
| 基本尺寸Dimensions | 产品型号及特性 Product Number | 产品单重(g) Weight | 装箱数Lot | |||||||
| L1 | L2 | L3 | L4 | H | C | D | E | |||

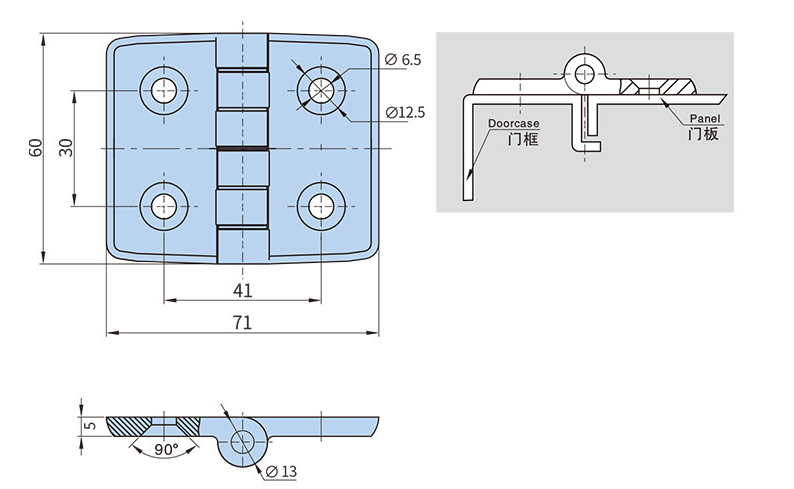

| 71 | 60 | 41 | 30 | 5 | 12.5 | 6.5 | 13 | KL-055-1 | 154 | 500 |

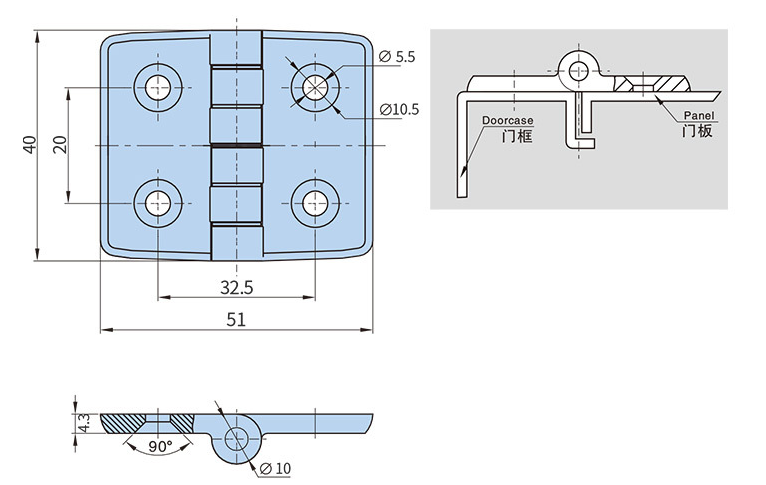

| 51 | 40 | 32.5 | 20 | 4.3 | 10.5 | 5.5 | 10 | KL-055-2 | 59 | 500 |
