KL-057

1.材质：镀锌钢铰链表面包不锈钢；2.备注：转动约为180°。

PDF下载 2D下载 3D下载

KL-057-1


KL-057-2


1.Material: Galvanized steel hinge chain watch bread made of stainless steel;

2.Remarks: The rotation is approximately 180 °.

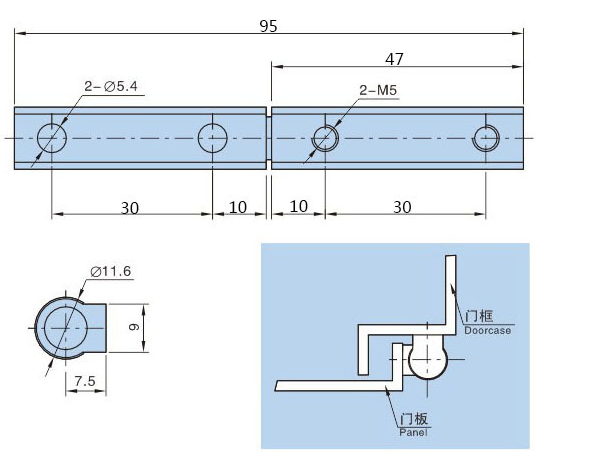

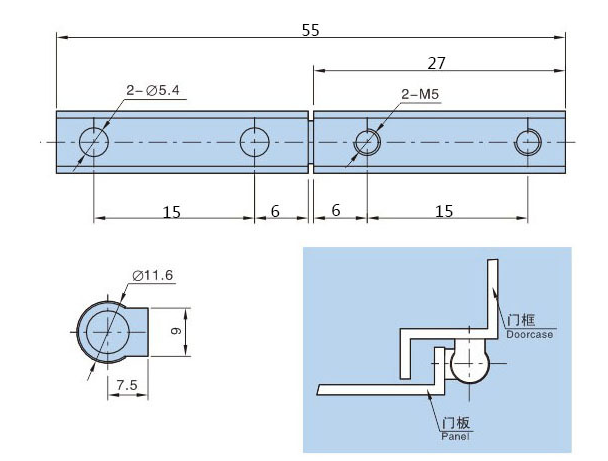

基本尺寸Dimensions

产品型号及特性

Product Number

产品单重(g)

Weight

装箱数Lot
L1L2L3L4

表面包不锈钢

stainless steel cover

95
473010KL-057-185300
5527156KL-057-246300
