KL-064

1.主体材质:锌合金动、静铰链，分不锈钢和镀镍钢销子2.表面处理:镀沙铬3.备注:转动约180°

PDF下载 2D下载 3D下载

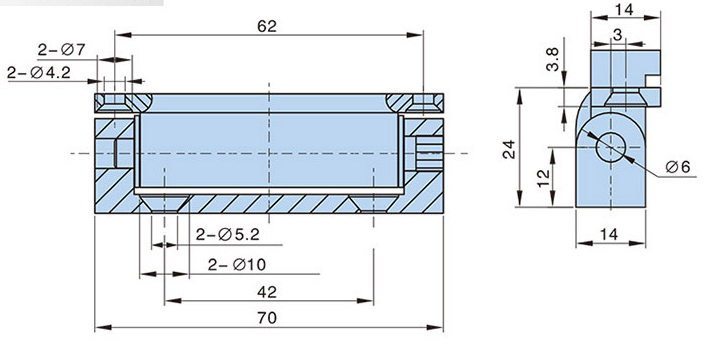

KL064-1

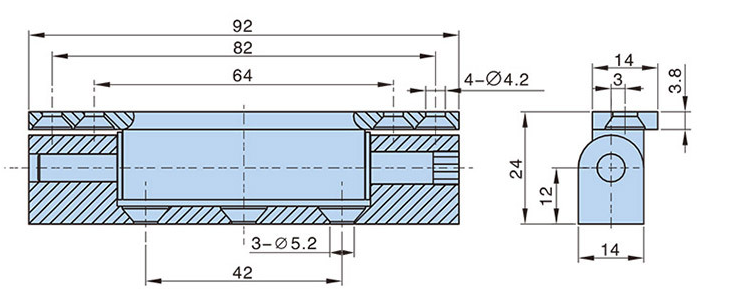

KL064-2


1.Main material: Zinc alloy dynamic and static hinges, divided into stainless steel and nickel plated steel pins. 2.Surface treatment: sand chrome plating.

3.Remarks: Rotate about 180 °

型号 Product no.产品单重(g)Weight装箱数Lot
KL064-1163200
KL064-2122300
