KL-068

1.主体材质:锌合金钢板铰链2.表面处理:镀蓝白锌3.备注:转动约120°

PDF下载 2D下载 3D下载

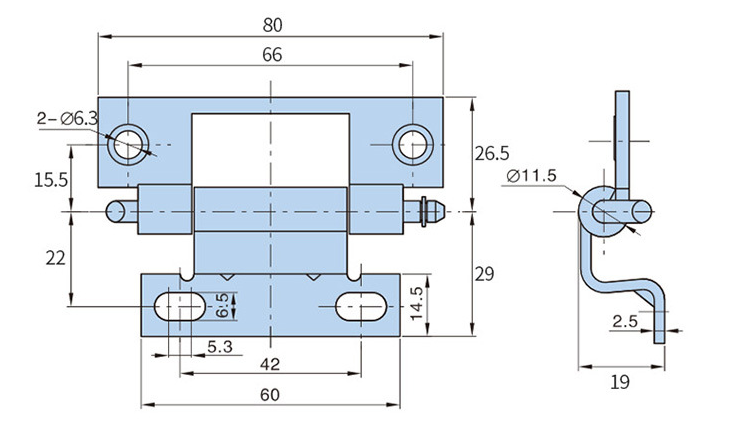

KL-068-1

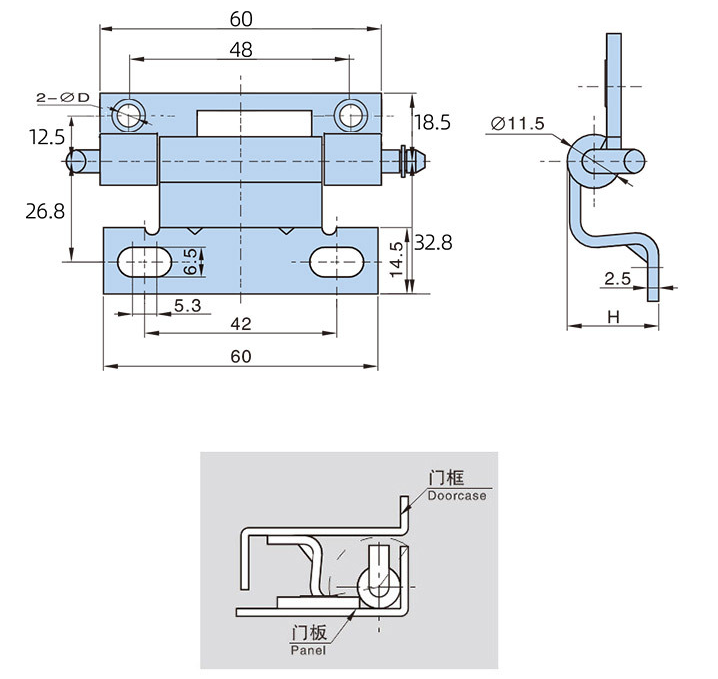

KL-068-2


1.Main material: Zinc alloy steel plate hinge

2.Surface treatment: Blue and white zinc plating

3.Remarks: Rotate about 120 °

基本尺寸 Dimensions产品型号及特性Product Number产品单重(g)Weight装箱数Lot
L1L2L3L4L5L6H∅D
80
6626.5292215.5196.3KL-068-1102200
604818.532.826.812.524.25.3KL-068-293200
