KL-069

1.主体材质: 不锈钢铰链2.表面处理:拉丝3.备注:旋转约180°

PDF下载 2D下载 3D下载

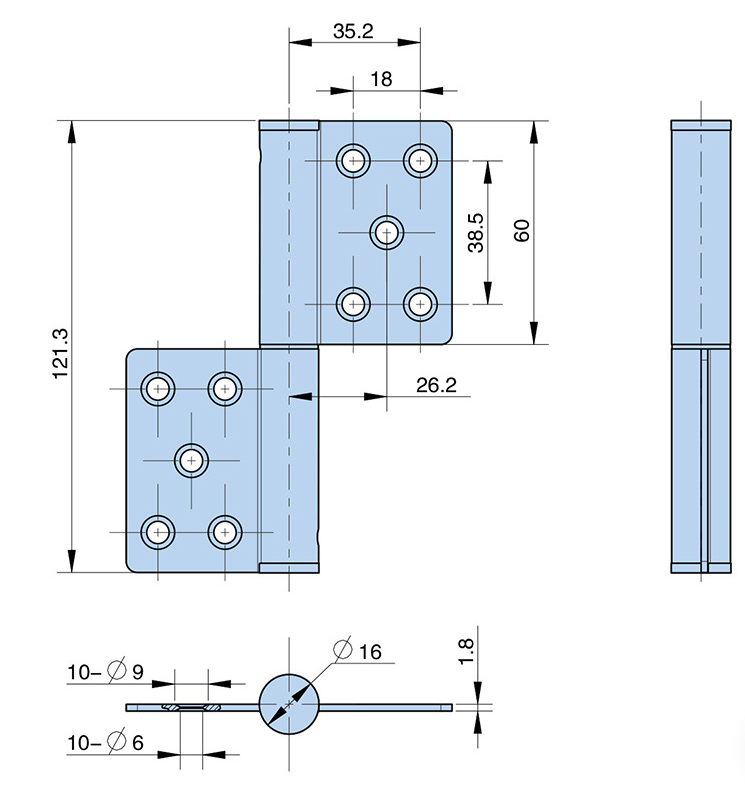

KL-069-1

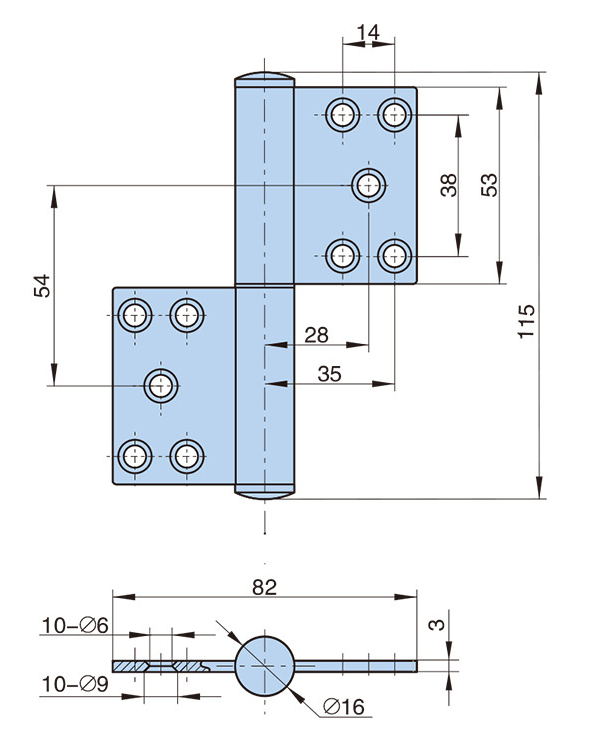

KL-069-2


1.Main material: stainless steel hinge

2.Surface treatment: brushed 3. Remarks: Rotate about 180 °

型号 Product no.产品单重(g)Weight

装箱数Lot

KL-069-1224.5100
KL-069-2217
100
