KL-072

1.主体材质:不锈钢铰链2.表面颜色:拉丝3.备注:转动约为180°

PDF下载 2D下载 3D下载

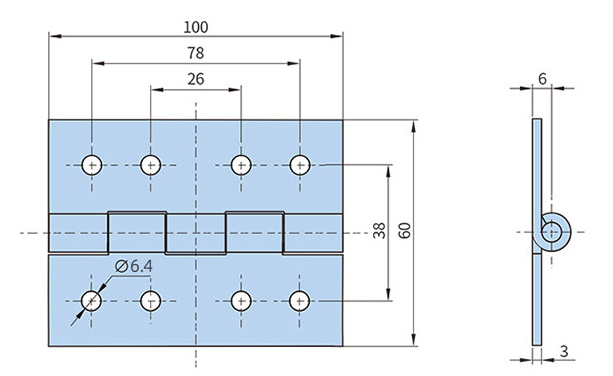

KL-072-1

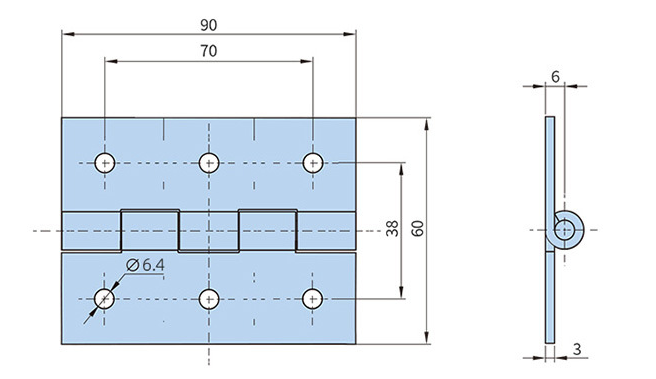

KL-072-2

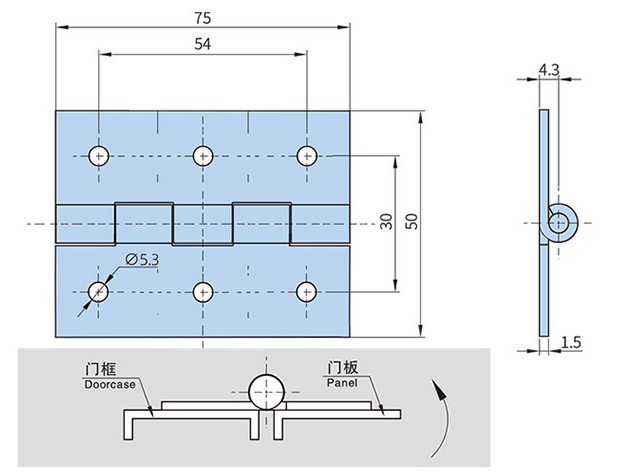

KL-072-3


1.Main material: stainless steel hinge

2.Surface color: brushed

3.Remarks: Rotation is about 180 °

基本尺寸 Dimensions

产品型号及特性

Product Number

产品单重(g)

Weight

装箱数

Lot

L1
L2L3B1B2∅HTN
10078
2660386.4638072-1191200
9070
60386.4636072-2175200
7554
50305.34.31.56072-362200
