KL-091

1.主体材质: PA-6动静铰链2.表面处理:黑色沙纹面3.备注:明铰链，左右开门通用，门板转动约为180°

PDF下载 2D下载 3D下载

KL-091-1


KL-091-2


1.Main material: PA-6 dynamic and static hinge

2.Surface treatment: black sand grain surface

3.Remarks: visible hinge, universal for left and right door opening, door panel rotation is about 180 °

基本尺寸 Dimensions

产品型号及特性

Product Number

产品单重(g)

Weight

装箱数Lot
ABC∅D∅EL1L2
62.558

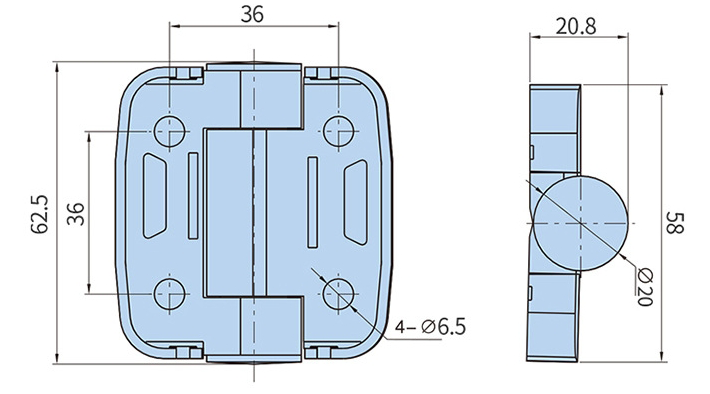

20.8∅6.5∅203636KL091-146400

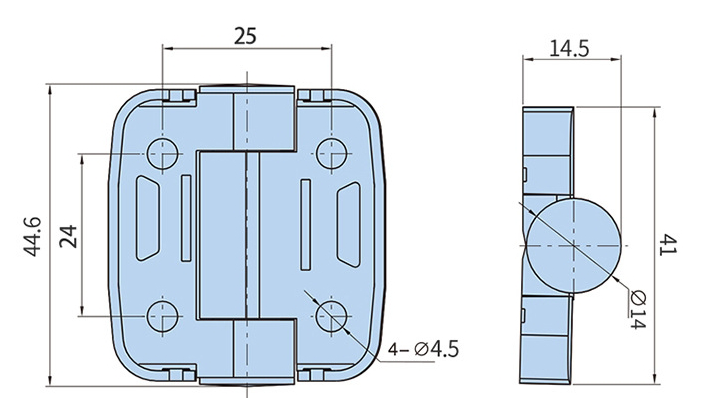

44.64114.5∅4.5∅142524KL091-218500
