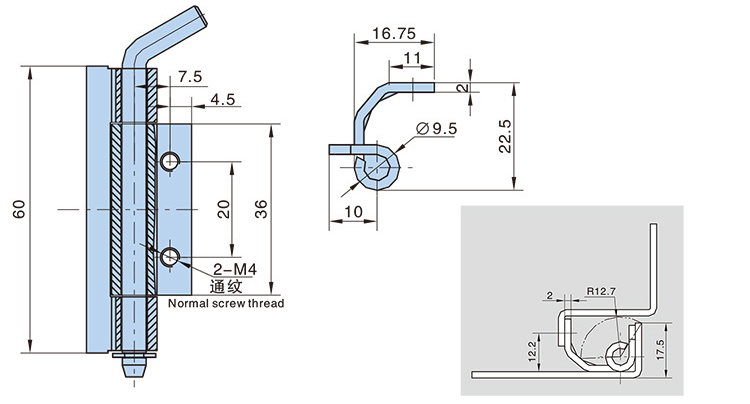

KL-092

1.主体材质:镀锌钢板或不锈钢铰链;镀镍钢销子或不锈钢2.表面颜色:不锈钢铰链 镀锌钢板3.备注:转动约为120°

PDF下载 2D下载 3D下载


1.Main material: galvanized steel plate or stainless steel hinge; Nickel plated steel pins or stainless steel

2.Surface color: stainless steel hinge galvanized steel plate

3.Remarks: Rotation is about 120 °

产品型号及特性 Product Number产品单重(g)Weight

装箱数Lot

镀锌钢板 Zinc plating steelKL-09253500
不锈钢 Stainless steelKL-092S53500
