KL-096-1
KL-096-2
KL-096-3
1.Main material: Zinc alloy dynamic and static hinges, divided into stainless steel and nickel plated steel pins.
2.Remarks: Rotate about 180 °
| 基本尺寸 Dimensions | 产品型号及特性 Product Number | |||||||||||
| L1 | L2 | B1 | B2 | B3 | B4 | H1 | H2 | M | 喷无光黑 Black powder coated | 镀沙铬 Gray chrome piating | 产品单重(g) Weight | 装箱数 Lot |

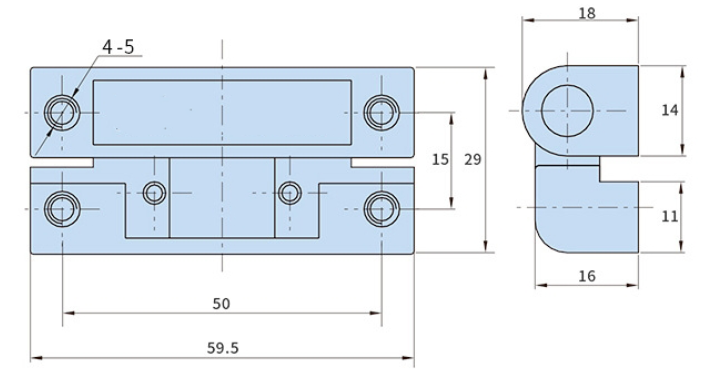

| 59.5 | 50 | 29 | 15 | 14 | 11 | 18 | 16 | 5 | KL-096-1.3 | KL-096-1.2 | 138 | 300 |

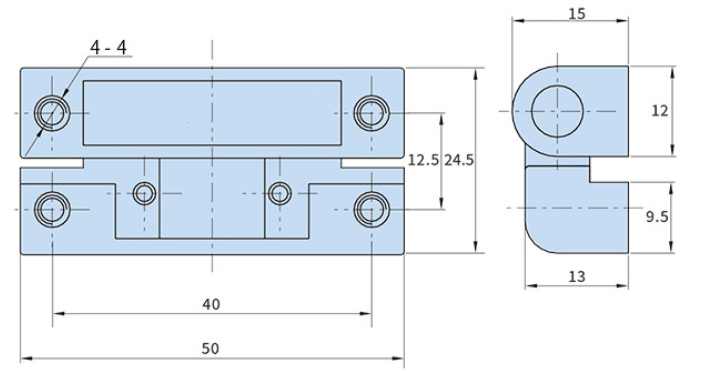

| 50 | 40 | 24.5 | 12.5 | 12 | 9.5 | 15 | 13 | 4 | KL-096-2.3 | KL-096-2.2 | 82 | 400 |

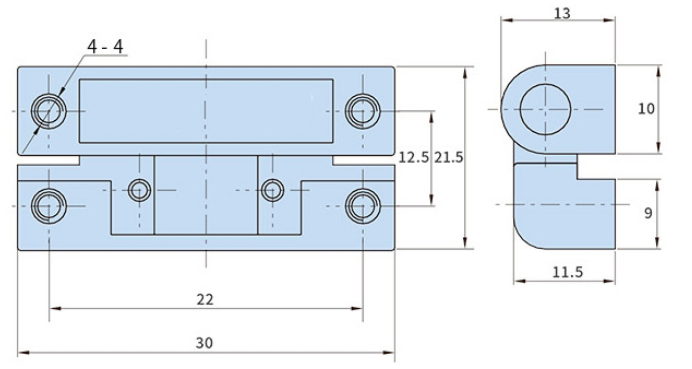

| 30 | 22 | 21.5 | 12.5 | 10 | 9 | 13 | 11.5 | 4 | KL-096-3.3 | KL-096-3.2 | 39 | 500 |
