1.Main material: zinc alloy dynamic and static hinges, divided into stainless steel and nickel plated steel pins.
2.Surface treatment: spray matte black.
3.Remarks: rotation is about 180 °

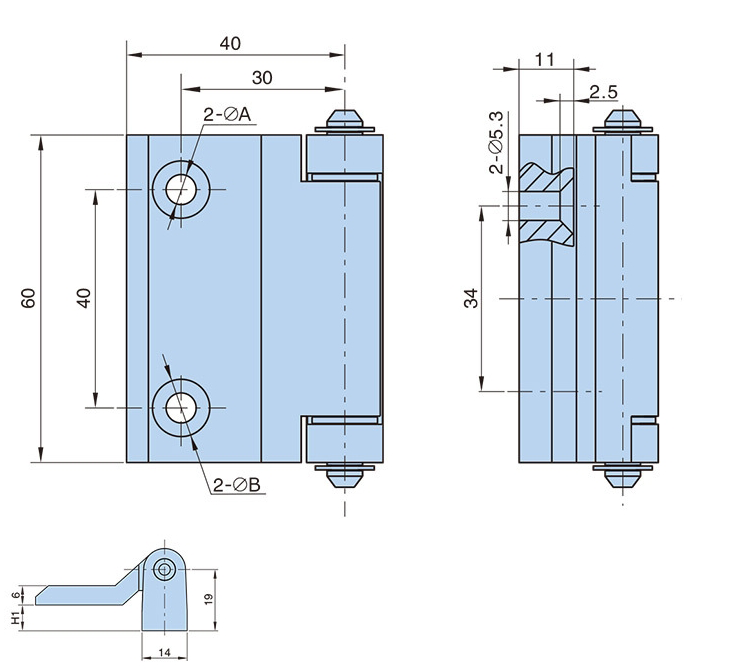

| 产品型号及特性Product Number | 基本尺寸Dimensions | 产品单重(g) Weight | 装箱数Lot | |||
| H1 | ∅A | ∅B | ||||
| KL-111-1-1 | 喷无光黑 | 8 | 5.5 | 10.5 | 161 | 200 |
| KL-111-1A-1 | 喷沙镀铬 | 10 | 5.3 | 10.7 | 166.4 | 200 |
