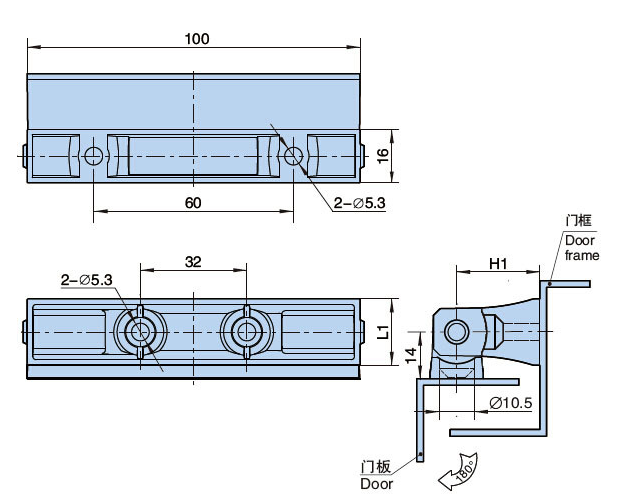

KL-126

1.材质：锌合金铰链，镀锌钢销子2.表面处理：镀亮铬3.备注：转动约180°

PDF下载 2D下载 3D下载


1.Material: Zinc alloy hinge, galvanized steel pin

2.Surface treatment: Bright chrome plating

3.Remarks: Rotate about 180 °

型号Product no.基本尺寸Dimensions产品单重(g)Weight装箱数Lot
H1L1
KL-126-12520182.550
KL-126-21818195.3100
