KL-136

1.材质：锌合金铰链，A3销子.2.表面处理：喷无光黑.3.适用门板厚度：KL136-1适用1.5mm,KL136-2适用2mm.4.备注：可开启角105°

PDF下载 2D下载 3D下载



1.Material: Zinc alloy hinge, A3 pin.

2.Surface treatment: matte black spray.

3.Applicable door panel thickness: KL136-1 suitable for 1.5mm, KL136-2 suitable for 2mm.

4.Remarks: Can open angle 105 °

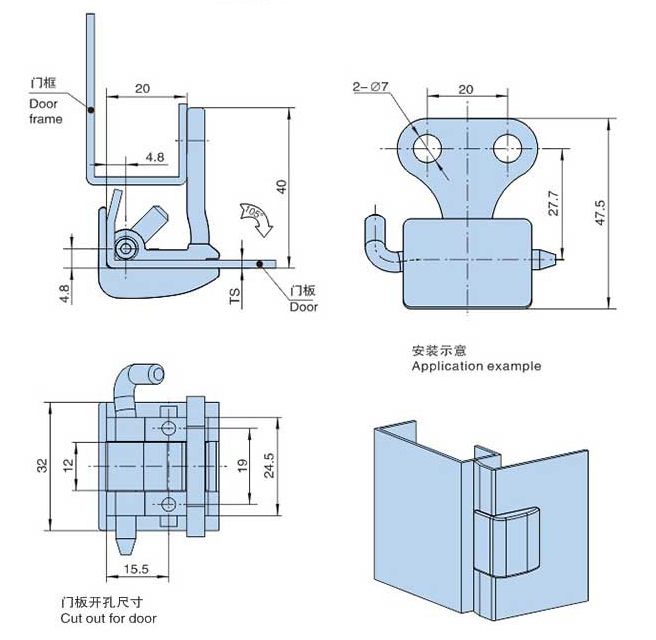

型号Product no.基本尺寸Dimensions产品单重(g)Weight装箱数Lot
KL136-1Ts=1.586.5
200
KL136-2Ts=285.3200
