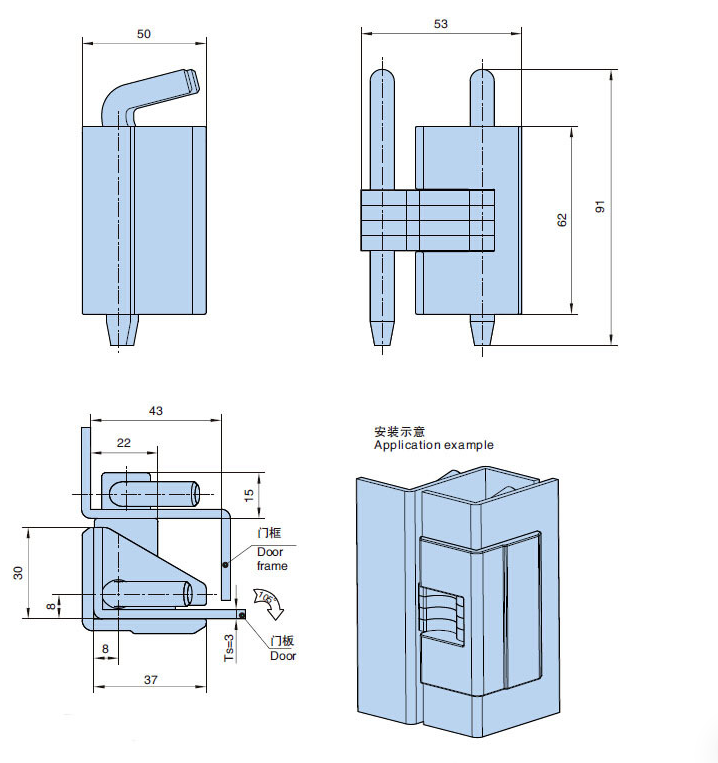

KL-137

1.材质：锌合金铰链，A3销子.2.表面处理：喷塑(蓝灰RAL 7012).3.适用门板厚度：3mm.4.备注：可开启角度105°

PDF下载 2D下载 3D下载


1.Material: Zinc alloy hinge, A3 pin.

2.Surface treatment: Spray coating (blue gray RAL 7012).

3.Applicable door panel thickness: 3mm.

4.Remarks: Can be opened at an angle of 105 °

型号 Product no.产品单重(g)Weight

装箱数Lot

KL-137372
