KL-DKS

1.主体材质:锌合金锁体、其他零件为不锈钢2.表面处理:镀亮铬，镀沙铬，无光黑3.适用板厚:1~4mm 4.温馨提示:不配安装螺丝，需客户自备。

PDF下载 2D下载 3D下载

KL-DKS-1-1、KL-DKS-1-2


KL-DKS-2-1、KL-DKS-2-2


1.Main material: zinc alloy lock body, other parts are made of stainless steel.

2.Surface treatment: bright chromium plating, sand chromium plating, matte black.

3.Applicable plate thickness: 1-4mm.

4.Warm reminder: not equipped with installation screws, customer needs to bring it by themselves.

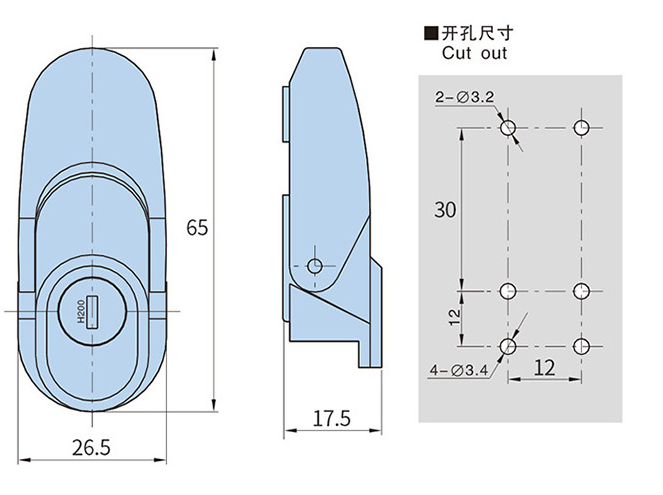

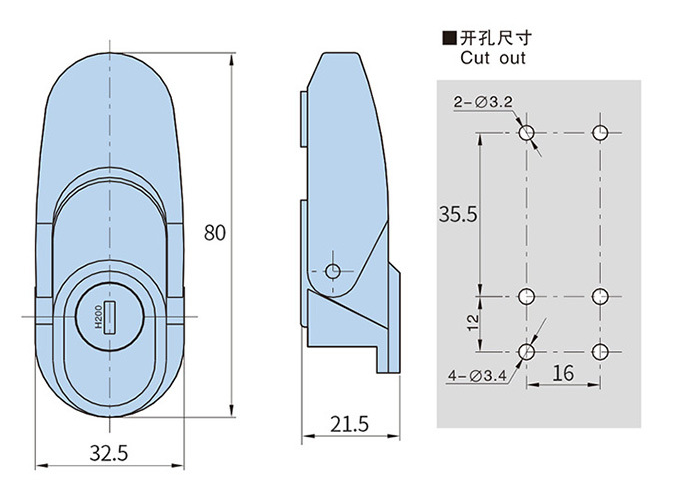

基本尺寸Dimensions

产品型号及特性 Product Number
L1L2B1B2H

有锁芯

With key

产品单重(g)Weight装箱数Lot无锁芯 w/o key产品单重(g)Weight装箱数Lot
8035.532.51621.5KL-DKS-1-1.1126.5200KL-DKS-1-2.1117.5200
653026.51217.5KL-DKS-2-1.169250KL-DKS-2-2.163.5250
