KL-MX08

1.主体材质: 锌合金锁座，按钮，锁舌2.表面处理:镀镍3.备注:当按钮按下行程6.5mm时，锁舌往里缩7mm

PDF下载 2D下载 3D下载


1.Main material: Zinc alloy lock seat, button, lock tongue

2.Surface treatment: Nickel plating

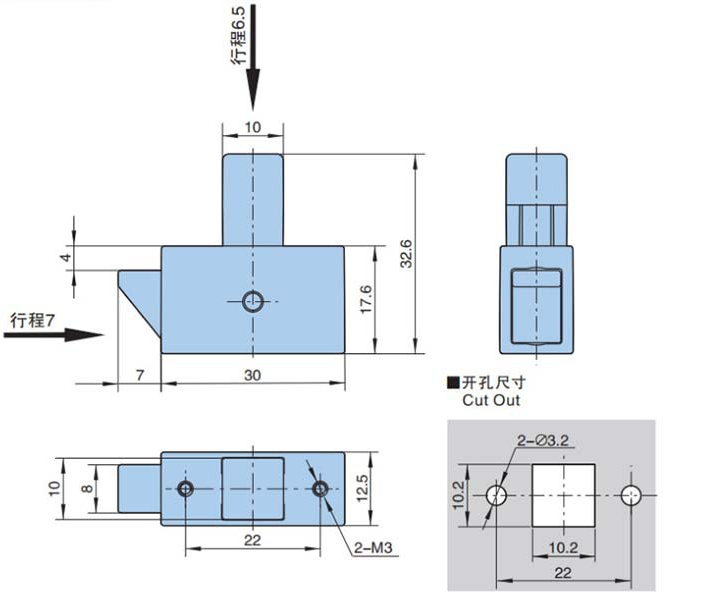

3.Remarks: When the button is pressed with a stroke of 6.5mm, the lock tongue retracts 7mm inward

型号 Product no.产品单重(g)Weight

装箱数Lot

KL-MX0835200
