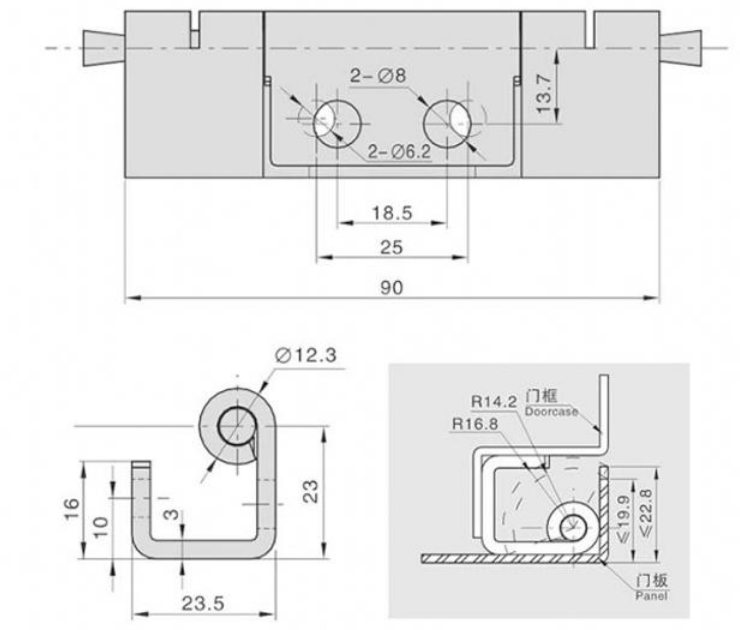

KL-HL048

材质：碳钢铰链、销子表面处理：镀蓝白锌结构说明：可开启角度110°性能参数：最大静载荷径向载荷：450N 轴向载荷：850N

PDF下载 2D下载 3D下载


Material: Carbon steel hinge and pin

Surface treatment: Blue white zinc plating

Structural description: Can be opened at an angle of 110 °

Performance parameters: maximum static load

Radial load: 450N Axial load: 850N

产品品名

Product Model

材质

Material quality

单重

Weight


装箱数

PCS

箱重

BOX Weight

装箱规格

Packing sepecification


HL-048


碳钢157.15
120
19.726.5*24*21
