KL-HL060(304)

材质：304不锈钢铰链、销子表面处理：镀蓝白锌结构说明：可开启角度110°性能参数：最大静载荷径向载荷：450N 轴向载荷：850N

PDF下载 2D下载 3D下载

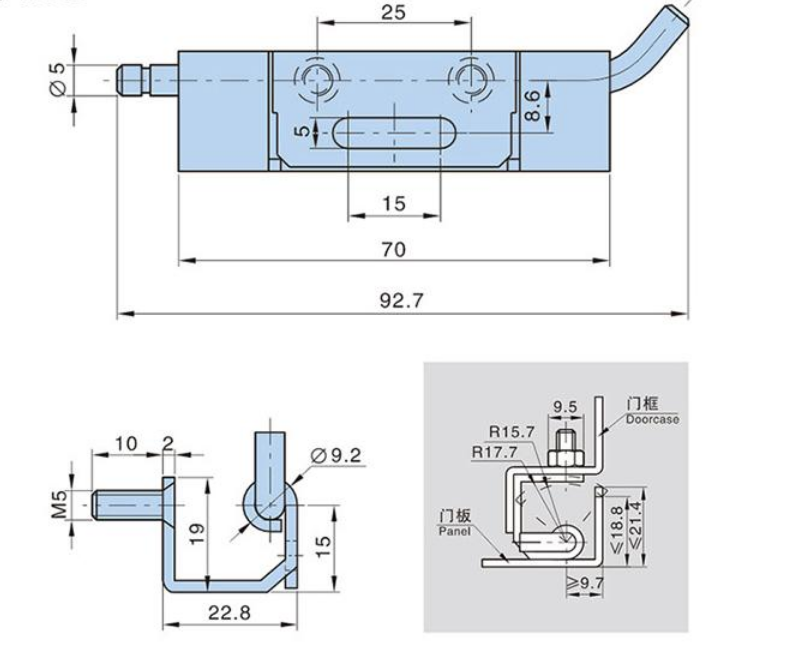

Material: 304 stainless steel hinge and pin Surface treatment: blue and white zinc plating Structure description: can be opened at an angle of 110 ° Performance parameters: maximum static load Radial load: 450N Axial load: 850N

产品品名

Product Model

材质

Material quality

单重

Weight

装箱数

PCS

箱重

BOX Weight

装箱规格

Packing sepecification

HL-060(304)304不锈钢82.51
50041.85
袋装
