KL-CL-125

1.材质：碳钢铰链、销子2.表面处理：镀蓝白锌3.结构说明：可开启角度110°3.性能参数：最大静载荷4.径向载荷：450N,轴向载荷：850N

PDF下载 2D下载 3D下载

1. Material: Carbon steel hinge and pin

2. Surface treatment: Blue white zinc plating

3. Structural description: Can be opened at an angle of 110 °

3. Performance parameters: Maximum static load

4. Radial load: 450N, axial load: 850N

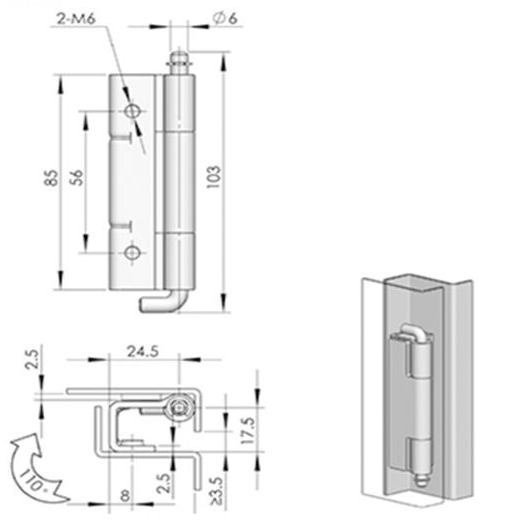

基本尺寸

Product Model

材质

Material quality

单重

Weight

装箱数

PCS

箱重

BOX Weight

装箱规格

Packing sepecification

CL-125

碳钢

170.09g

200

33.5kg

袋装
