KL-CL-137

1.材质：碳钢/304不锈钢2.表面处理：镀蓝白锌/磁力抛光3.结构说明：可开启角度135°4.性能参数：最大静载荷5.径向载荷：520N/,轴向载荷：375N

PDF下载 2D下载 3D下载

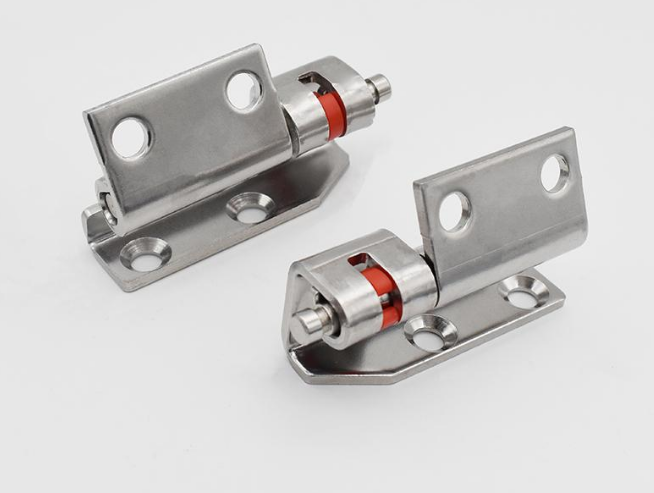

1. Material: Carbon steel/304 stainless steel

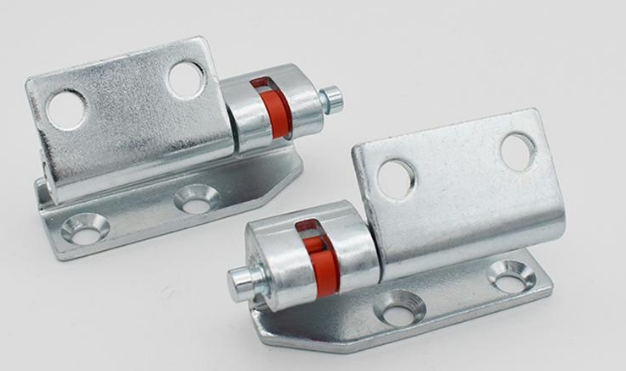

2. Surface treatment: Blue white zinc plating/magnetic polishing

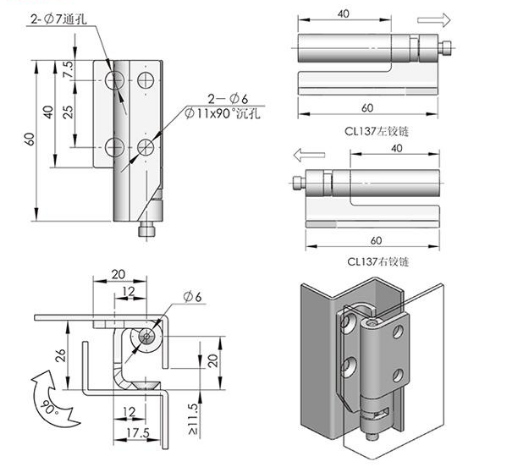

3. Structural description: Can be opened at an angle of 135 °

4. Performance parameters: Maximum static load

5. Radial load: 520N/, axial load: 375N

产品品名

Product Model

材质

Material quality

单重

Weight

装箱数

PCS

箱重

BOX Weight

装箱规格

Packing sepecification

CL-137

碳钢/不锈钢（304)

90.79g

300

29.45kg

26.5*23.*21
