KL-CL-138

1.材质：碳钢/304不锈钢2.表面处理：镀蓝白锌/磁力抛光3.结构说明：可开启角度135°4.性能参数：最大静载荷5.径向载荷：690N,轴向载荷：630N

PDF下载 2D下载 3D下载

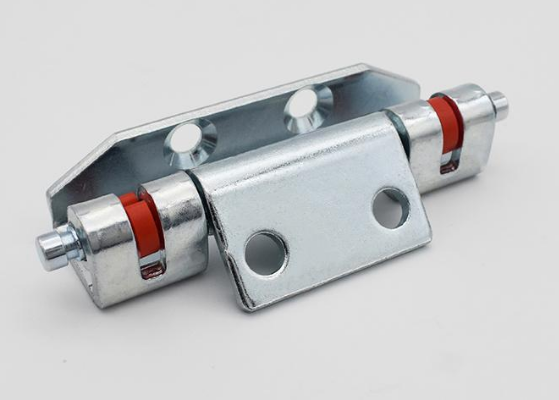

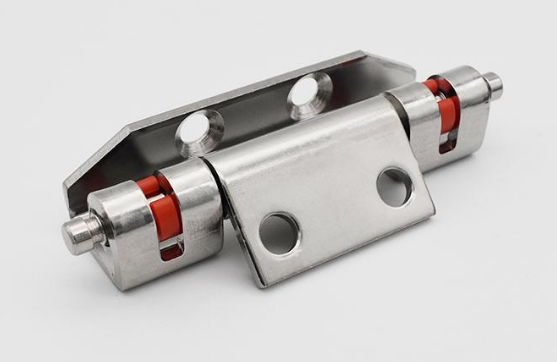

1. Material: Carbon steel/304 stainless steel

2. Surface treatment: Blue white zinc plating/magnetic polishing

3. Structural description: Can be opened at an angle of 135 °

4. Performance parameters: Maximum static load

5. Radial load: 690N, axial load: 630N

产品品名

Product Model

材质

Material quality

单重

Weight

装箱数

PCS

箱重

BOX Weight

装箱规格

Packing sepecification

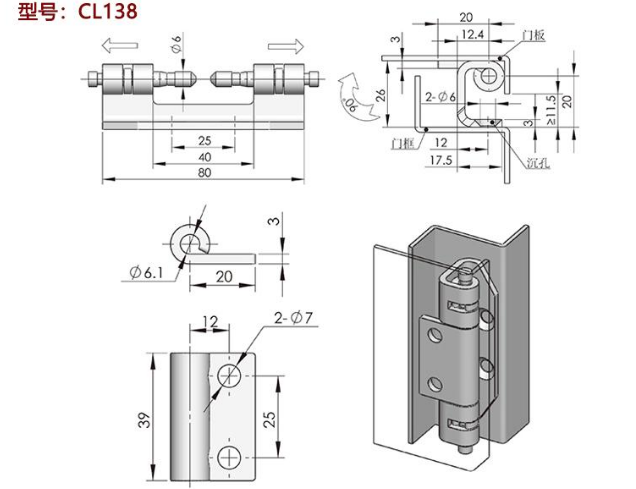

CL-138

碳钢/不锈钢（304）

122.07g

240

29.5kg

26.5*23*19.5
