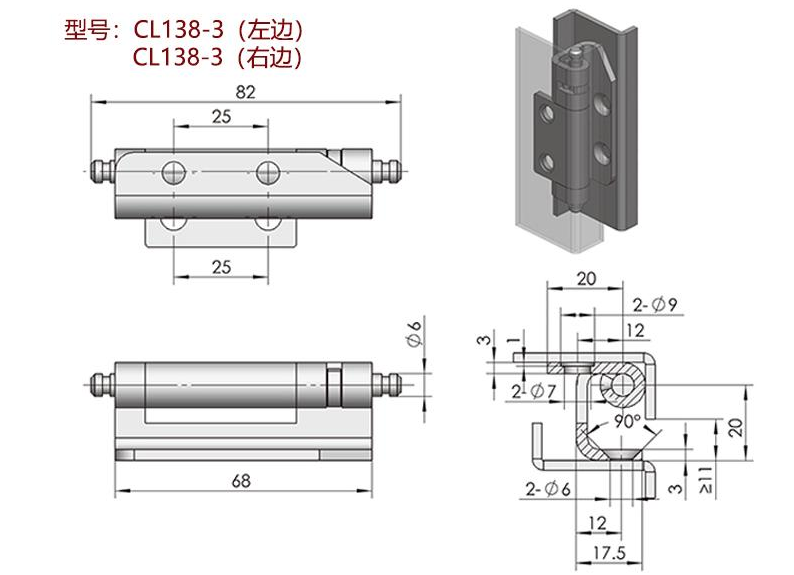

KL-CL-138-3

1.材质：碳钢/304不锈钢2.表面处理：镀蓝白锌/磁力抛光3.结构说明：可开启角度90°4.性能参数：最大静载荷5.径向载荷：385N,轴向载荷：600N

PDF下载 2D下载 3D下载

1. Material: Carbon steel/304 stainless steel

2. Surface treatment: Blue white zinc plating/magnetic polishing

3. Structural description: Can be opened at an angle of 90 °

4. Performance parameters: Maximum static load

5. Radial load: 385N, axial load: 600N

产品品名

Product Model

材质

Material quality

单重

Weight

装箱数

PCS

箱重

BOX Weight

装箱规格

Packing sepecification

CL-183-3

碳钢/不锈钢（304）

105.54g

240

34kg

35*23.5*21
