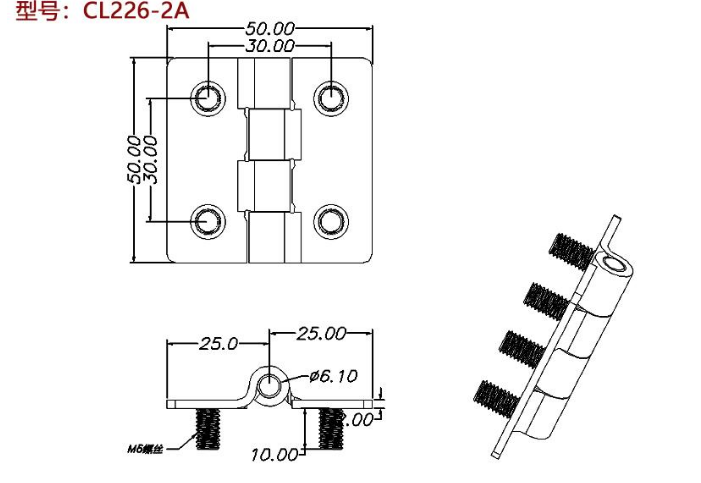

KL-CL-226-2A

1.材质：碳钢/304不锈钢2.表面处理：镀亮铬/电泳黑/磁力抛光3.结构说明：可开启角度180°4.性能参数：最大静载荷5.径向载荷：1200N 轴向载荷：1300N6.镶嵌螺钉推荐拧紧扭矩：10N

PDF下载 2D下载 3D下载

1. Material: Carbon steel/304 stainless steel

2. Surface treatment: bright chrome plating/electrophoretic black/magnetic polishing

3. Structural description: Can be opened at an angle of 180 °

4. Performance parameters: Maximum static load

5. Radial load: 1200N Axial load: 1300N

6. Recommended tightening torque for embedded screws: 10N M

产品型号

Product Model

材质

Material quality

单重

Weight

装箱数

PCS

箱重

BOX Weight

装箱规格

Packing Specification

CL-226-2A

碳钢

不锈钢（304）

66.51

300

21kg

39*26*21
