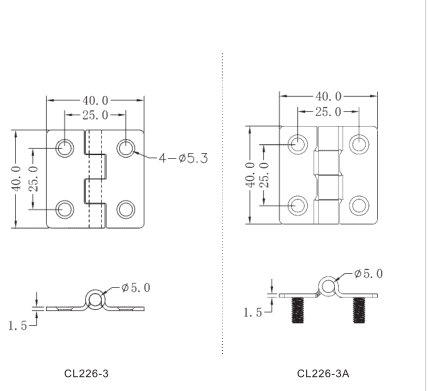

KL-CL-226-3

1.材质：碳钢/304不锈钢2.表面处理：电泳黑/镀亮铬/镀蓝白锌/磁力抛光3.结构说明：可开启角度160°4.径向载荷1000N 轴向载荷1200N5.镶嵌螺钉推荐扭矩：10N.M

PDF下载 2D下载 3D下载

1. Material: Carbon steel/304 stainless steel

2. Surface treatment: Electrophoretic black/Bright chromium plating/Blue white zinc plating/Magnetic polishing

3. Structural description: Can be opened at an angle of 160 °

4. Radial load1000N, axial load 1200N

5. Recommended torque for embedded screws: 10N M

产品型号

Product Model

材质

Material quality

单重

Weight

装箱数

PCS

箱重

BOX Weight

装箱规格

Packing specification

CL-226-3

碳钢

不锈钢304

28.72g

1000

29.5kg

26.5*24*21
