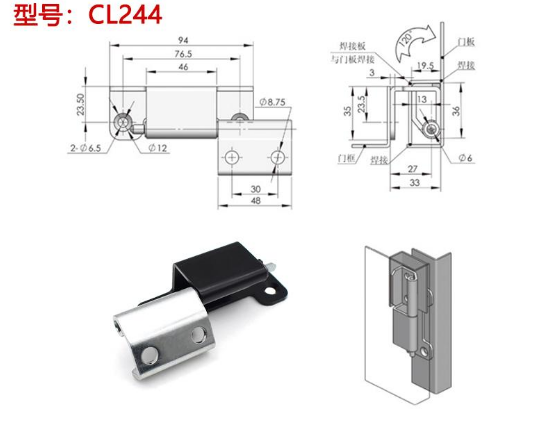

KL-CL-244

1.材质：碳钢铰链、销子2.表面处理：镀白锌铰链、销子3.结构说明：可开启角度120°4.性能参数：最大静载荷5.径向载荷：270N 轴向载荷：305N

PDF下载 2D下载 3D下载

1. Material: Carbon steel hinge and pin

2. Surface treatment: Zinc plated hinges and pins

3. Structural description: Can be opened at an angle of 120 °

4. Performance parameters: Maximum static load

5. Radial load: 270N Axial load: 305N

产品型号

Product Model

材质

Material quality

单重

Weight

装箱数

PCS

箱重

BOX Weight

箱重

Packing specification

CL-244

碳钢

229.31g

15kg

26.5*24*21
