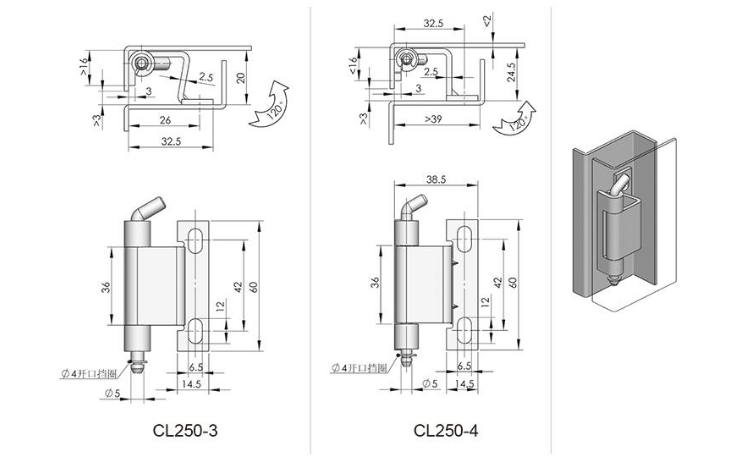

KL-CL-250-3

1.材质：碳钢/304不锈钢2.表面处理：镀蓝白锌/磁力抛光3.结构说明：可开启角度120°4.性能参数：最大静载荷5.径向载荷：350N 轴向载荷：778N

PDF下载 2D下载 3D下载

1.Material: Carbon steel/304 stainless steel

2. Surface treatment: Blue white zinc plating/magnetic polishing

3. Structural description: Can be opened at an angle of 120 °

4. Performance parameters: Maximum static load

5. Radial load: 250N Axial load: 778N

产品型号

Product Model

材质

Material quality

单重

Weight

装箱数

PCS

箱重

BOX Weight

装箱规格

Packing specification

CL-250-3

碳钢

不锈钢

碳钢：79.52g

不锈钢：75.86g

碳钢:320

不锈钢:320

碳钢:26.65kg

不锈钢:26.5kg

35*23.5*20
