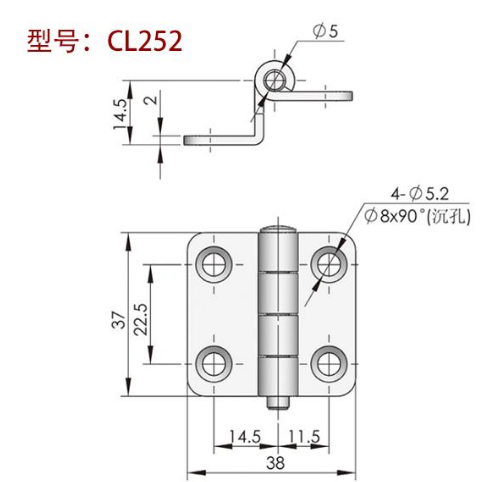

KL-CL-252

1.材质：碳钢/不锈钢铰链销子2.表面处理：电镀白锌/磁力抛光3.结构说明：可开启角度180°4.性能参数：最大静载荷5.径向载荷：520N 轴向载荷：800N

PDF下载 2D下载 3D下载

1. Material: Carbon steel/stainless steel hinge pin

2. Surface treatment: Plating white zinc/magnetic polishing

3. Structural description: Can be opened at an angle of 180 °

4. Performance parameters: Maximum static load

5. Radial load: 520N Axial load: 800N

产品型号

Product Model

材质

Material quality

单重

Weight

装箱数

PCS

箱重

BOX Weight

装箱规格

Packing specification

CL-252

碳钢/不锈钢

35.17g

1000

35.75kg

35*23.5*20
