KL-253-3

1.材质：碳钢/304不锈钢2.表面处理：镀蓝白锌/镜面抛光3.结构说明：可开启180°4.性能参数:最大静载荷5.型号：CL-253-2 径向载荷：1000N 轴向载荷：1200N

PDF下载 2D下载 3D下载

1. Material: Carbon steel/304 stainless steel

2. Surface treatment: Blue white zinc plating/mirror polishing

3. Structural description: Can be opened 180 °

4. Performance parameters: Maximum static load

5. Model: CL-253-2 Radial load: 1000N Axial load: 1200N

6.Model: CL-253-3 Radial load: 1500N Axial load: 1800N

产品型号

Product Model

材质

Material quality

单重

Weight

装箱数

PCS

箱重

BOX Weight

装箱规格

Packing specification

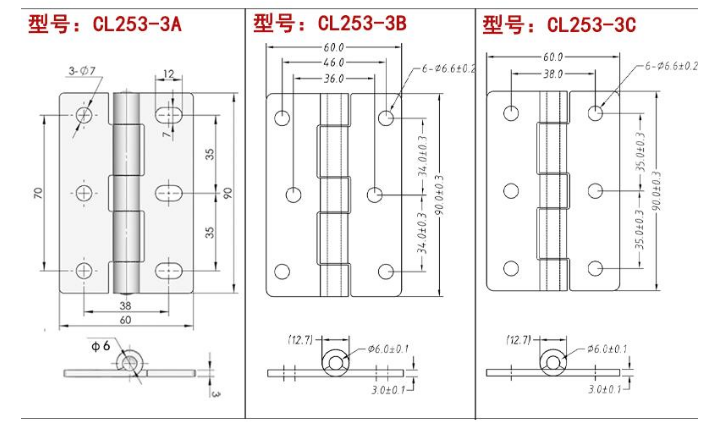

CL-253-3

碳钢

不锈钢

168.09g

200

24.5

26.5*24*21
