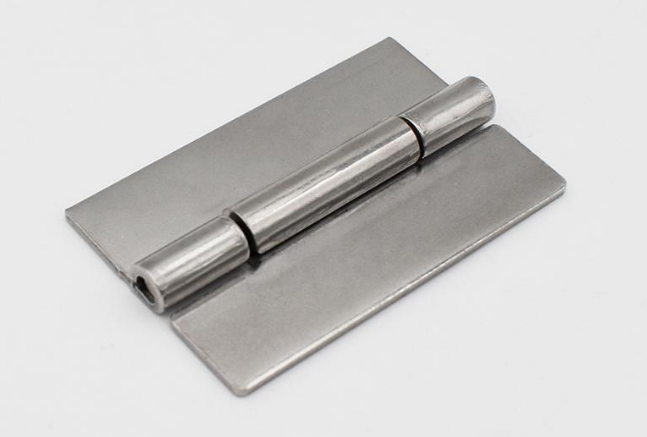

KL-CL-253-4

1.材质：碳钢/304不锈钢2.表面处理：镀蓝白锌/镜面抛光3.结构说明：可开启角度180°4.性能参数：最大静载荷5.径向载荷：516N 轴向载荷：665N

PDF下载 2D下载 3D下载

1. Material: Carbon steel/304 stainless steel

2. Surface treatment: Blue white zinc plating/mirror polishing

3. Structural description: Can be opened at an angle of 180 °

4. Performance parameters: Maximum static load

5. Radial load: 516N Axial load: 665N

产品型号

Product Model

材质

Material quality

单重

Weight

装箱数

PCS

箱重

BOX Weight

装箱规格

Packing specification

CL-253-4

碳钢

不锈钢

25.73g

1000

26.5kg

26.5*23*19.5
