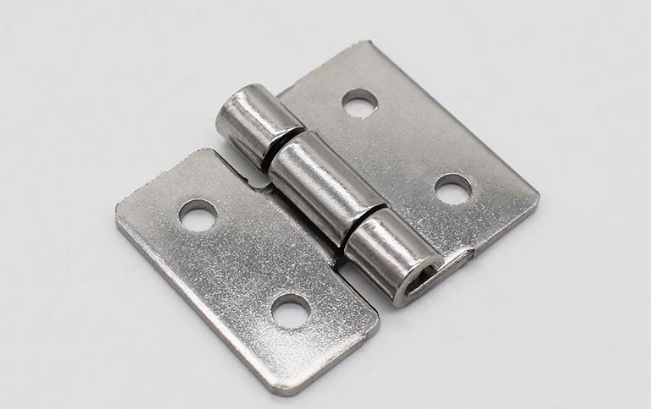

KL-CL-253-4A

1.材质：碳钢/304不锈钢2.表面处理：镀蓝白锌/镜面抛光3.结构说明：可开启角度180°4.性能参数：最大静载荷5.径向载荷：380N 轴向载荷：810N

PDF下载 2D下载 3D下载

1. Material: Carbon steel/304 stainless steel

2. Surface treatment: Blue white zinc plating/mirror polishing

3. Structural description: Can be opened at an angle of 180 °

4. Performance parameters: Maximum static load

5. Radial load: 380N Axial load: 810N

产品型号

Product Model

材质

Material quality

单重

Weight

装箱数

PCS

箱重

BOX Weight

装箱规格

Packing specification

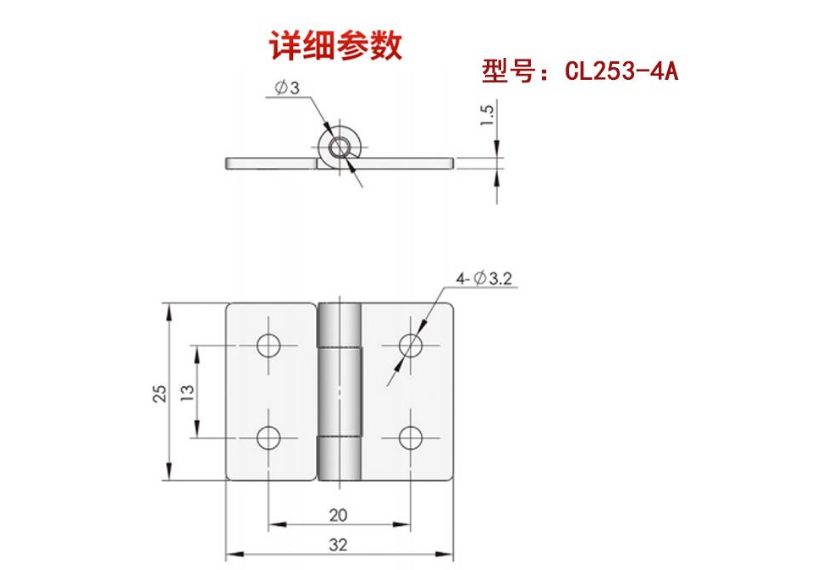

CL-253-4A

碳钢

不锈钢

12.07g

3000

30.45

35*23.5*20
