KL-CL-253-5

1.材质：碳钢/304不锈钢2.表面处理：镀白锌/磁力抛光3.结构说明：可开启角度180°4.性能参数：最大静载荷5.径向载荷：840N 轴向载荷：1380N

PDF下载 2D下载 3D下载

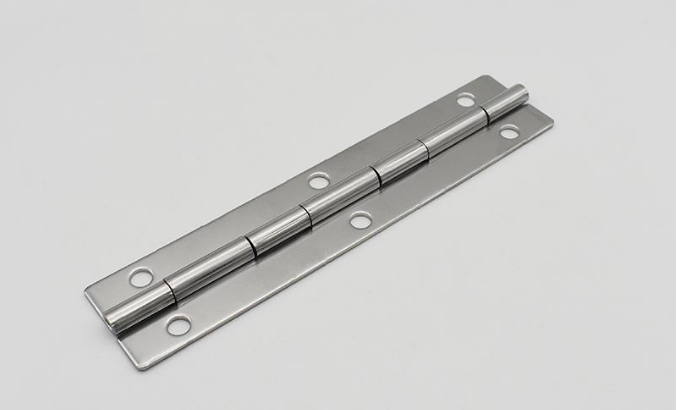

1. Material: Carbon steel/304 stainless steel

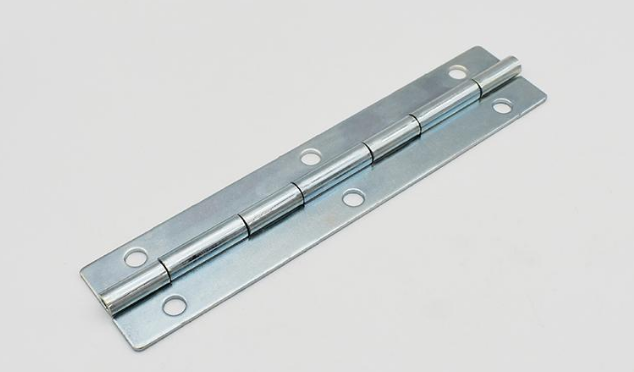

2. Surface treatment: white zinc plating/magnetic polishing

3. Structural description: Can be opened at an angle of 180 °

4. Performance parameters: Maximum static load

5. Radial load: 840N Axial load: 1380N

产品型号

Product Model

材质

Material quality

单重

Weight

装箱数

PCS

箱重

BOX Weight

装箱规格

Packing specification

CL-253-5

碳钢

不锈钢

碳钢：82.28g

不锈钢：81.87g

400

碳钢:33.5kg

不锈钢:34kg

35*23.5*21
