KL-CL-253-7

1.材质：碳钢/不锈钢2.表面处理：镀锌蓝白/磁力抛光3.结构说明：可开启180°4.性能参数：最大静载荷5.径向载荷：590N 轴向载荷：635N

PDF下载 2D下载 3D下载

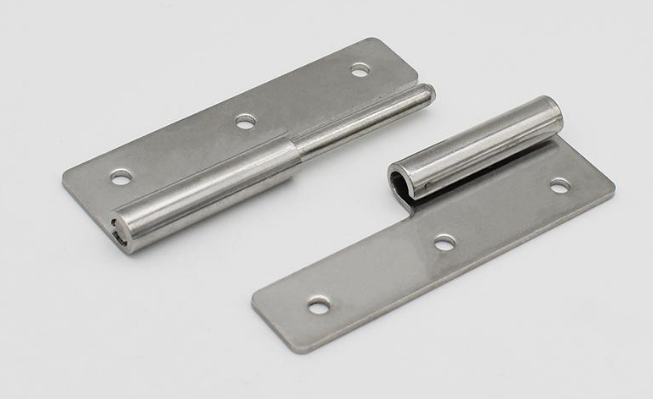

1. Material: Carbon steel/stainless steel

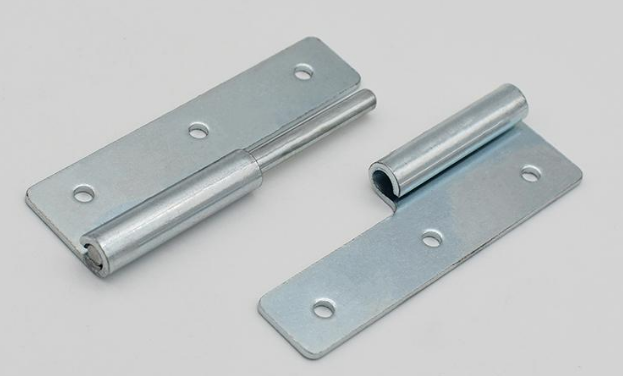

2. Surface treatment: galvanized blue white/magnetic polishing

3. Structural description: Can be opened 180 °

4. Performance parameters: Maximum static load

5. Radial load: 550N Axial load: 650N

产品品名

Product Model

材质

Mater quality

单重

Weight

装箱数

pcs

箱重

BOX Weight

装箱规格

Packing

CL-253-7

碳钢

锌合金

碳钢：39.15g

锌合金：38.33g

碳钢:480

锌合金:480

碳钢:19.5kg

锌合金:21.5kg

26.5*19.5*14
