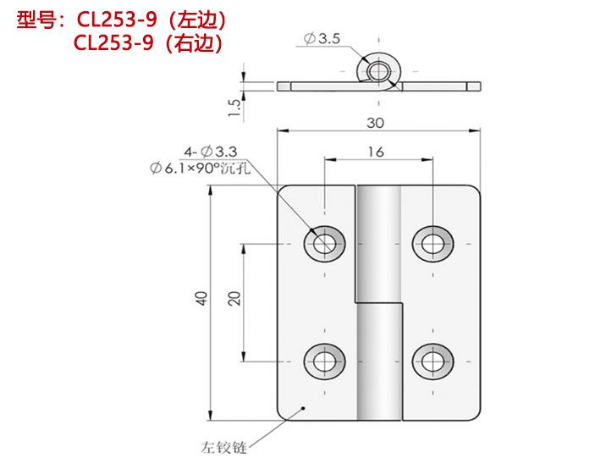

KL-CL-253-9

1.材质:碳钢/不锈钢2.表面处理:镀锌蓝白/磁力抛光3.结构说明:可开启180°4.性能参数:最大静载荷5.径向载荷:305N 轴向载荷:470N



1. Material: Carbon steel/stainless steel

2. Surface treatment: galvanized blue white/magnetic polishing

3. Structural description: Can be opened 180 °

4. Performance parameters: Maximum static load

5. Radial load: 550N Axial load: 650N

产品品名

Product Model

材质

Mater quality

单重

Weight

装箱数

pcs

箱重

BOX Weight

装箱规格

Packing specification

CL-253-9

碳钢

不锈钢

碳钢:20.64g

不锈钢:20.85g

碳钢:1000

不锈钢:1000

碳钢:21.5kg

不锈钢:21.5kg

26.5*24*21
