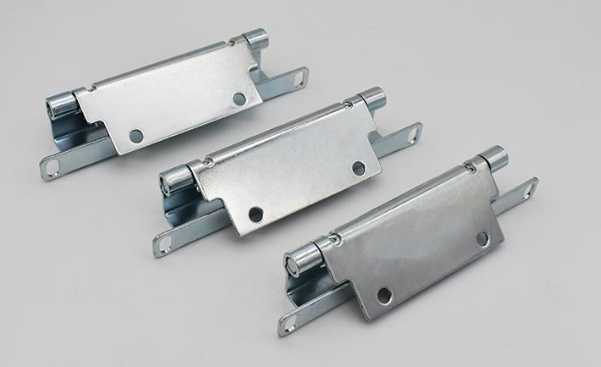

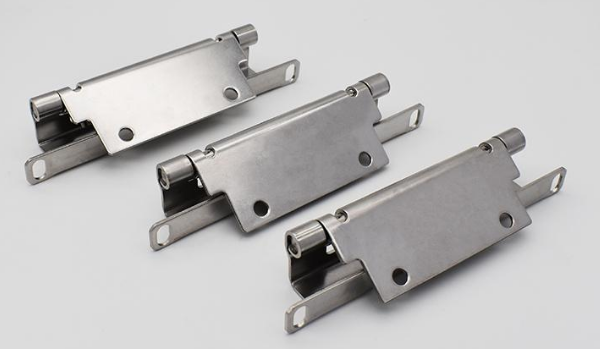

KL-CL-268

1.材质:碳钢/304不锈钢2.表面处理:镀蓝白锌/磁力抛光3.结构说明:可开启角度120°4.性能参数:最大静载荷5.径向载荷:260N 轴向载荷:450N




1. Material: Carbon steel/304 stainless steel

2. Surface treatment: Blue white zinc plating/magnetic polishing

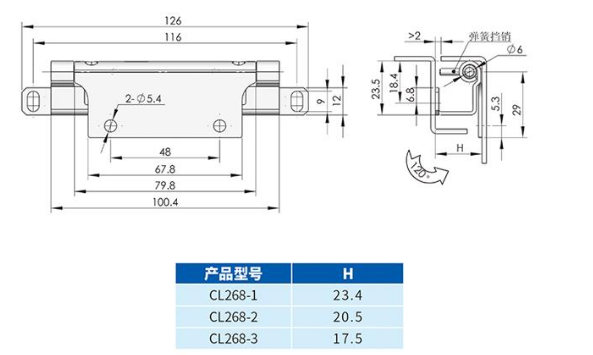

3. Structural description: Can be opened at an angle of 120 °

4. Performance parameters: Maximum static load

5. Radial load: 260N Axial load: 450N

产品品名

Product Model

材质

Mater quality

单重

Weight

装箱数

pcs

箱重

BOX Weight

装箱规格

Packing specification


CL-268

碳钢

不锈钢

碳钢:104.92g

不锈钢:103.2g

碳钢:144

不锈钢:144


碳钢:16.5kg

不锈钢:16.5kg

35*23.5*21
