KL-CL-274

1.材质：碳钢/304不锈钢2.表面处理：镀白锌3.结构说明：可开启角度120°4.性能参数：最大静载荷5.径向载荷：180N 轴向载荷：310N

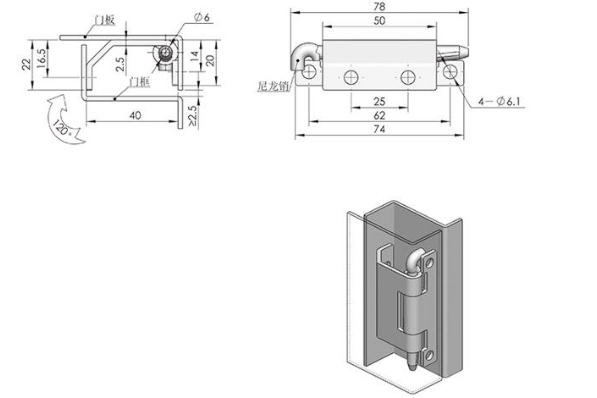

PDF下载 2D下载 3D下载

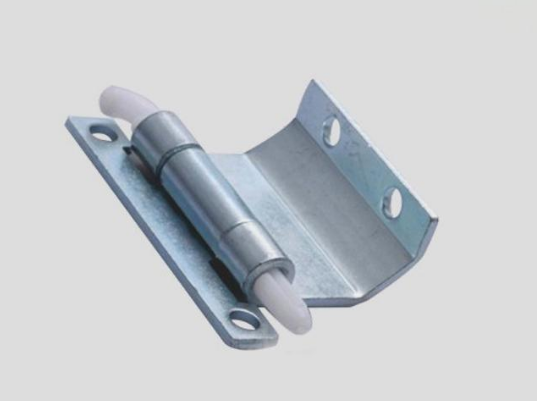

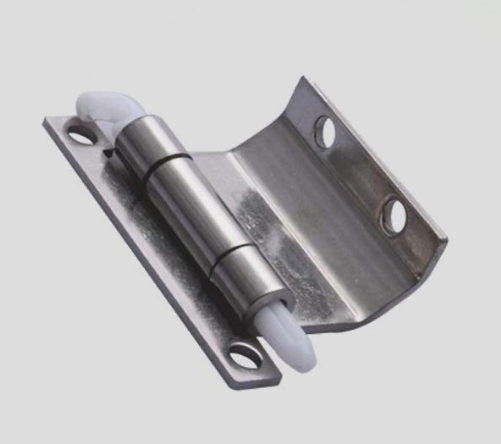

1. Material: Carbon steel/304 stainless steel

2. Surface treatment: Plating with white zinc

3. Structural description: Can be opened at an angle of 120 °

4. Performance parameters: Maximum static load

5. Radial load: 180N Axial load: 310N

产品型号

Product Model

材质

Material quality

单重

Weight

装箱数

PCS

箱重

BOX Weight

装箱规格

Packing specifition

CL-274

碳钢

不锈钢
