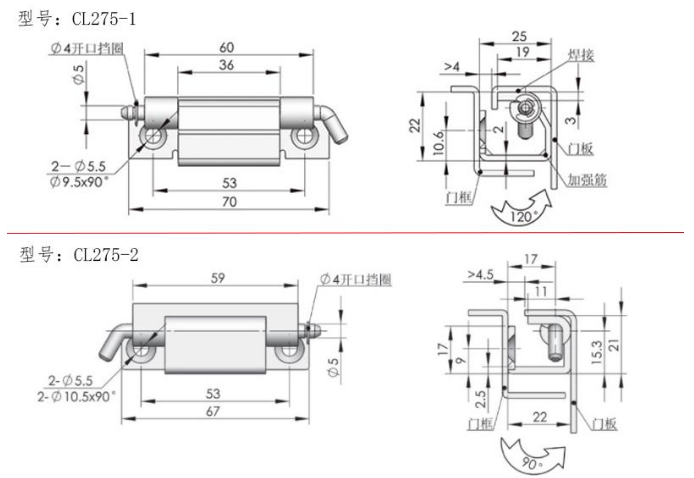

KL-CL-275-1

1.材质：碳钢/304不锈钢2.表面处理：镀蓝白锌/磁力抛光3.结构说明：可开启角度120°4.性能参数：最大静载荷5.径向载荷：120N 轴向载荷：310N

PDF下载 2D下载 3D下载

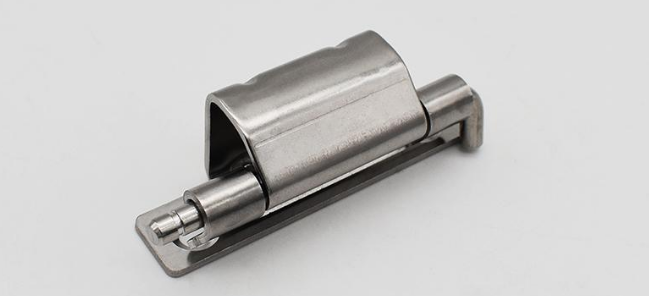

1. Material: Carbon steel/304 stainless steel

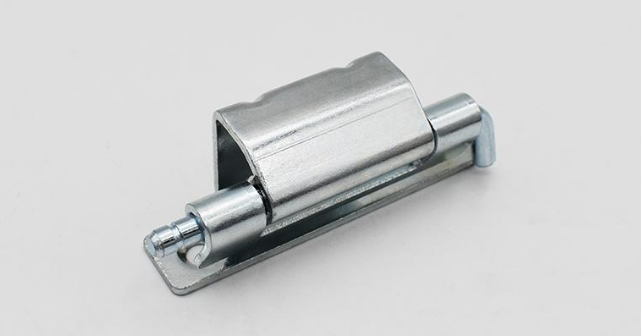

2. Surface treatment: Blue white zinc plating/magnetic polishing

3. Structural description: Can be opened at an angle of 120 °

4. Performance parameters: Maximum static load

5. Radial load:120N Axial load: 310N

产品品名

Product Model

材质

Mater quality

单重

Weight

装箱数

pcs

箱重

BOX Weight

装箱规格

Packing specification

CL-275-1

碳钢

69.41g

500

37kg

袋装

不锈钢

77g

500

37kg

袋装
