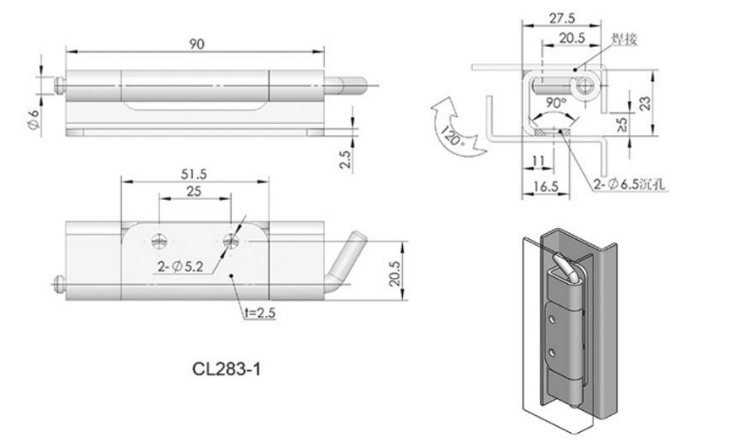

KL-CL-283-1

1.材质：碳钢/304不锈钢2.表面处理：镀蓝白锌/磁力抛光3.结构说明：可开启角度120°4.性能参数：最大静载荷5.径向载荷：500N 轴向载荷：980N

PDF下载 2D下载 3D下载

1. Material: Carbon steel/304 stainless steel

2. Surface treatment: Blue white zinc plating/magnetic polishing

3. Structural description: Can be opened at an angle of 120 °

4. Performance parameters: Maximum static load

5. Radial load:500N Axial load: 980N

基本尺寸

Product Model

材质

Material quality

单重

Weight

装箱数

PCS

箱重

BOX Weight

装箱规格

Packing specification

CL-283-1

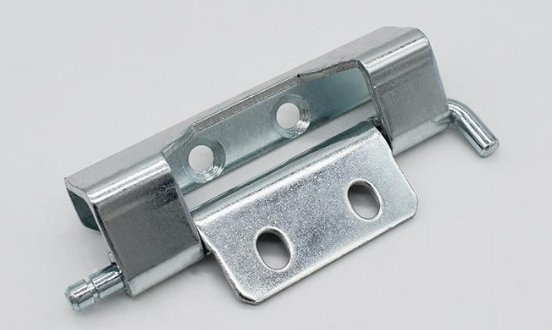

碳钢

147.66g

200

26.5*23*19.5

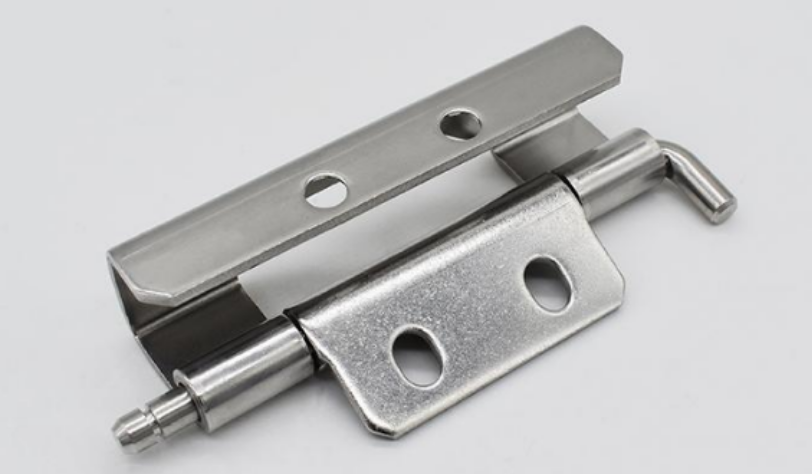

304不锈钢

142.09g

200

26.5*23*19.5
