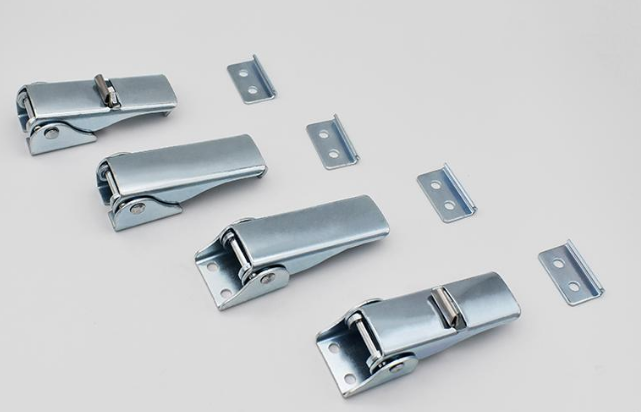

KL-DK602

1.材质：碳钢/304不锈钢2.表面处理：电镀蓝白锌/磁力抛光3.性能参数：最大静载荷4.径向载荷：430N

PDF下载 2D下载 3D下载

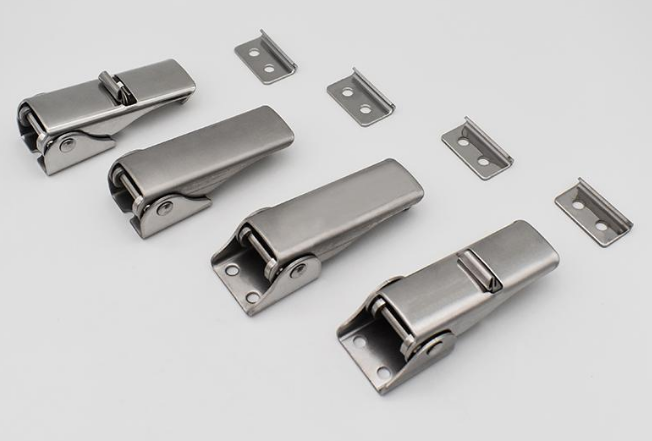

1. Material: Carbon steel/304 stainless steel

2. Surface treatment: Electroplating blue white zinc/Magnetic polishing

3. Performance parameters: Maximum static load

4. Radial load: 430N

产品型号

Product Mode

材质

Material quality

单重

Weight

装箱数

pcs

箱重

BOX  Weight

装箱规格

packing specification

DK602
碳钢73.27g20015kg35*23.5*21
不锈钢73.29g20015.5kg35*23.5*21
