KL-LG01F-1-8 x L
KL-LG01F-2-8 x L
KL-LG02F-1-8 x L
KL-LG02F-3-9 x L
1.Material: A3 pull rod, copper pin, pin cap
2.Surface treatment: blue and white zinc plating
3.Waterproof grade: IP65

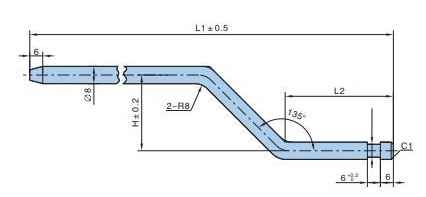

| 代号名称 | L1 | L2 | H |
| KL-LG01F-1-8x365 | 365 | 50 | 35 |
| KL-LG01F-1A-8x767 | 767 | 60 | 35 |
| KL-LG01F-1-8x670 | 670 | 47 | 32 |

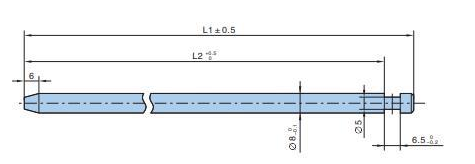

| 代号名称 | L1 | L2 |
| KL-LG01F-2-8x506 | 506 | 493.7 |
| KL-LG01F-2-8x398 | 398 | 387 |
| KL-LG01F-2-8x1000 | 1000 | 989 |
| KL-LG01F-2-8x394 | 394 | 383 |

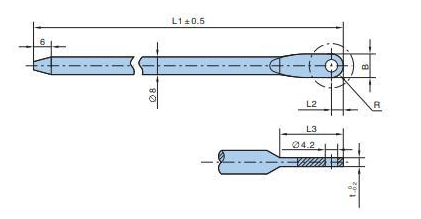

| 代号名称 | L1 | L2 | L3 | t | R | B |
| KL-LG02F-1-8x600 | 600 | 4 | 21.5 | 3 | R4 | 8 |
| KL-LG02F-1-8x800 | 800 | 5.5 | 23 | 3 | R5 | 10 |

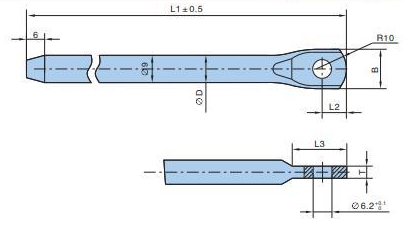

| 代号名称 | L1 | L2 | L3 | T | D | B |
| KL-LG02F-3-9x1023 | 1023 | 8 | 18 | 4 | 9 | 13 |
| KL-LG02F-3-6x300 | 300 | 5.75 | 13 | 2 | 6 | 11.5 |
