KL001-1
KL001-2
1.Main material: zinc alloy
2.Surface treatment: sand chromium plating, bright chromium plating
3.Door panel thickness: 1-3MM
| 基本尺寸Dimensions | 产品型号及特性 Product Number | |||||||||
| L1 | L2 | B1 | B2 | H1 | H2 | θ° | 镀亮铬Bright chrome plating | 镀沙铬 Gray chrome plating | 产品单重(g)Weight | 装箱数 Lot |

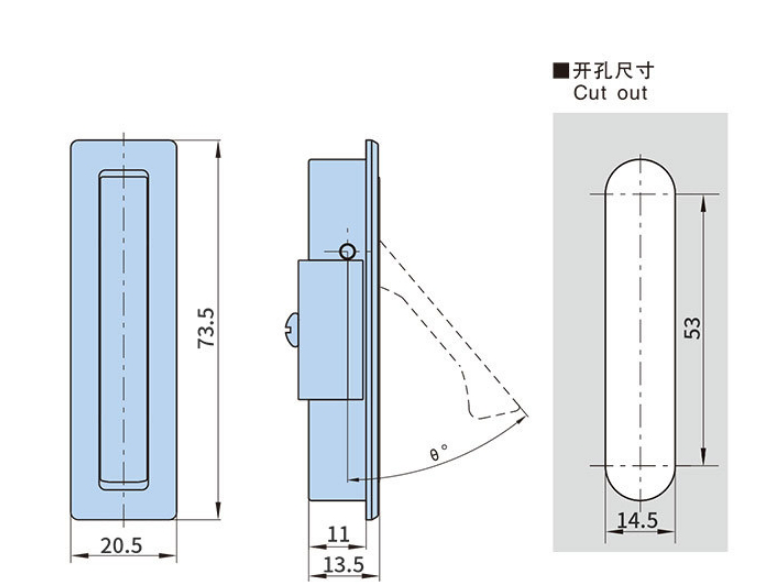

| 73.5 | 53 | 20.5 | 14.5 | 13.5 | 11 | 45 | KL001-1.1 | KL001-1.2 | 77 | 300 |

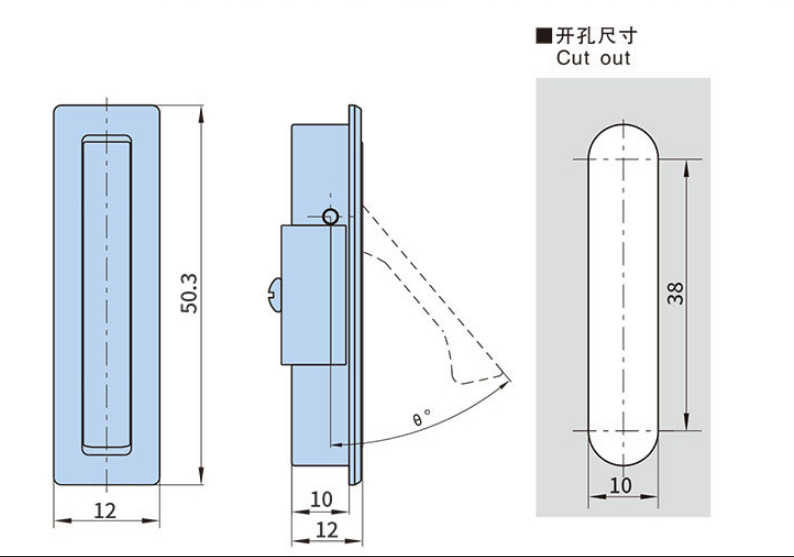

| 50.3 | 38 | 12 | 10 | 12 | 10 | 70 | KL001-2.1 | KL001-2.2 | 35 | 500 |
