KL-004

1.材质:铁，不锈钢2.表面处理:镀亮铬，抛光3.备注:常规为KL004-2，高为37.5中心距为100

PDF下载 2D下载 3D下载

KL004-1


KL004-2


KL004-3


1.Material: iron, stainless steel

2.Surface treatment: bright chromium plating, polished

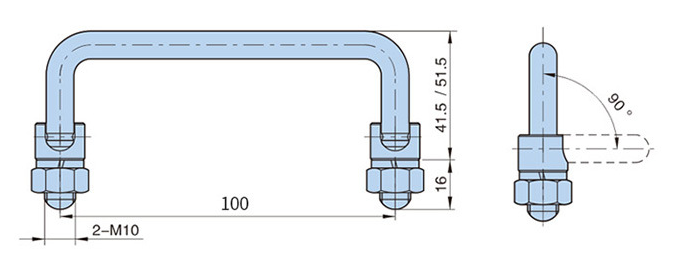

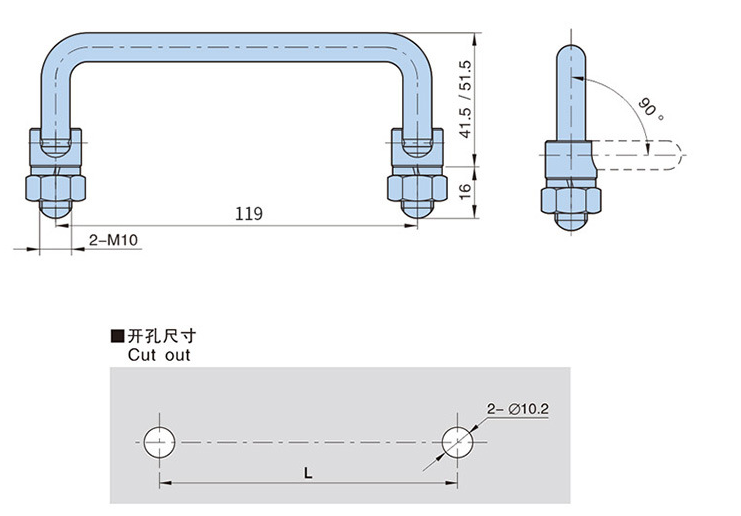

3.Remarks: The standard is KL004-2, with a height of 37.5 and a center distance of 100

型号 Product no.

基本尺寸L

Dimensions L

产品单重(g)

Weight

装箱数

Lot

KL004-187
118.5200
KL004-2100129200
KL004-2(不锈钢)100132200
KL004-3119133200
KL004-4135140200
KL004-5149147200
