KL-041

1.主体材质:PA+铜镶件拉手座，6063铝管 2.表面处理:粗火花纹黑色拉手座，阳极氧化亚光黑铝管 3.适用板厚:1~5mm 4.备注:拉手(L)长度可定制

PDF下载 2D下载 3D下载

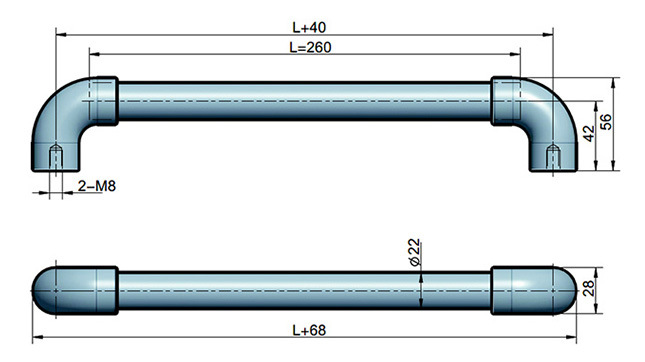

KL041-1

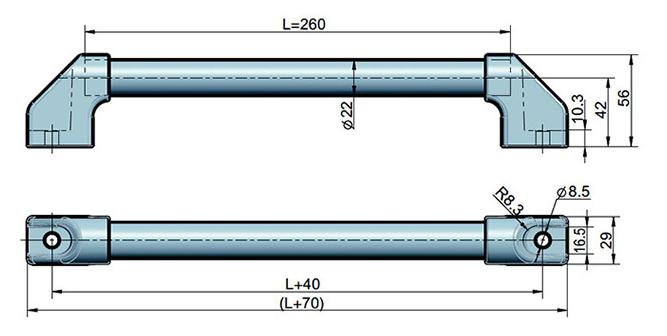

KL041-2


1.Main material: PA+copper inlay handle seat, 6063 aluminum tube

2.Surface treatment: coarse flame pattern black handle seat, anodized matte black aluminum tube

3.Applicable plate thickness: 1-5mm

4.Remarks: The length of the handle (L) can be customized
