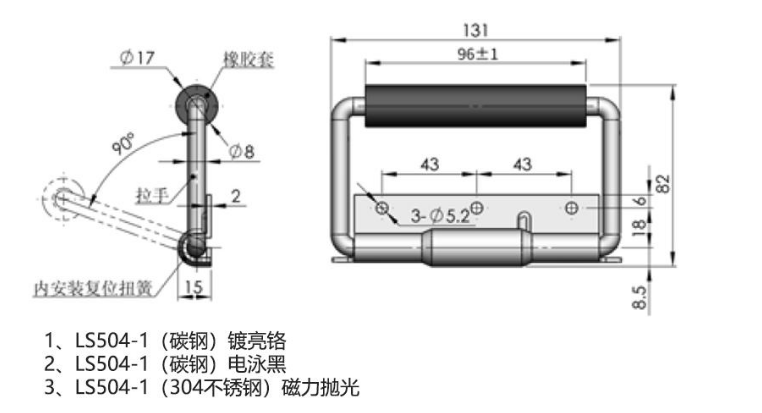

KL-LS504-1

1.材质：碳钢/304不锈钢2.表面处理：电泳黑/镀亮铬/磁力抛光3.性能参数：最大静载荷4.最大静载荷：800N

PDF下载 2D下载 3D下载

1. Material: Carbon steel/304 stainless steel

2. Surface treatment: Electrophoretic black/Bright chrome plating/Magnetic polishing

3. Performance parameters: Maximum static load

4. Maximum static load: 800N

产品型号

Product Mode

材质

Material quality

单重

Weight

装箱数

pcs

箱重

BOX Weight

装箱规格

packing specification

LS504-1

碳钢

231.83g

15.5kg

35*23.5*21

304不锈钢

229.6g

16kg

35*23.5*21
