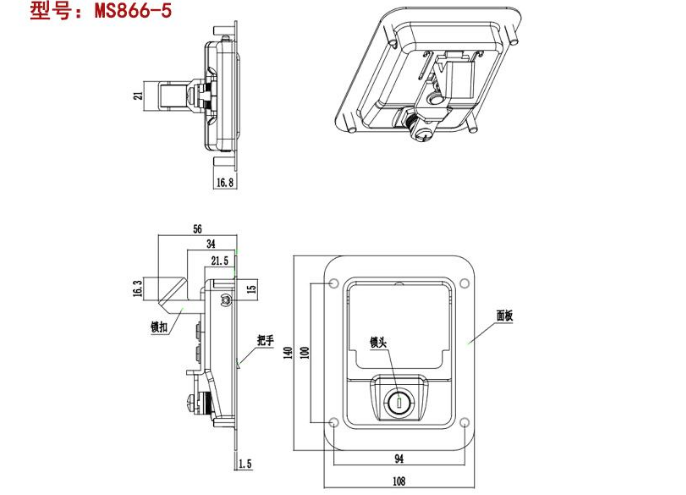

KL-MS866-5

1.材质：碳钢面板、把手、锁舌、压板、焊接螺钉、锌合金锁头组件2.表面处理:喷塑（黑淡光）面板、把手、镀亮光铬锁头组件，镀白锌锁舌、压板、焊接螺钉3.性能参数：手柄承载拉力值：≤700N,锁舌承载力≤

PDF下载 2D下载 3D下载



1. Material: Carbon steel panel, handle, locking tongue, pressure plate, welding screw, zinc alloy lock head assembly

2. Surface treatment: Spray painted (black light) panel, handle, chrome plated lock head assembly, zinc plated lock tongue, pressure plate, welded screws

3. Performance parameters: Handle bearing tension value: ≤ 700N, lock tongue bearing capacity: ≤ 800N

产品型号

Product Mode

材质

Material quality

单重

Weight

装箱数

pcs

箱重

BOX  Weight

装箱规格

packing specification

MS866-5
碳钢430.36g3015kg36.5*30*32
304不锈钢
30
36.5*30*32
