1. Material: 304 stainless steel pin, pin
2. Surface treatment: Hand polished mirror surface

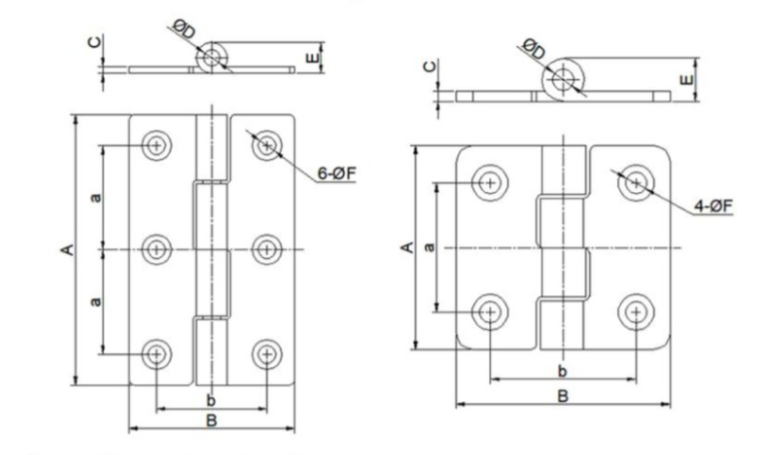

| 产品尺寸/Basic dimensions | 产品型号 Product Model | 产品单重 Weight | 装箱数 PCS | 备注remarks | |||||||
| b | a | F | E | D | C | B | A | ||||
| 21 | 25 | 5.5 | 9.2 | 5 | 2 | 36 | 41 | CL-HFL-11-41 | 33.9 | 4孔∅8.6锪锥孔 | |
| 32 | 30 | 5.5 | 9.2 | 5 | 2 | 48 | 48 | CL-HFL-11-48 | 49 | 4孔∅8.6锪锥孔 | |
| 42 | 37 | 6.5 | 12.2 | 6 | 3 | 62 | 59 | CL-HFL-11-59 | 111 | 4孔L∅10.6锪锥孔 | |
| 21 | 25 | 5.5 | 9.2 | 5 | 2 | 36 | 66 | CL-HFL-11-66 | 568 | 6孔∅8.6锪锥孔 | |
| 47 | 43 | 6.5 | 12.2 | 6 | 3 | 80 | 70 | CL-HFL-11-70 | 162 | 4孔∅10.6锪锥孔 | |
| 32 | 30 | 5.5 | 9.2 | 5 | 2 | 48 | 78 | CL-HFL-11-78 | 80.5 | 6孔∅8.6锪锥孔 | |
| 42 | 31 | 6.5 | 12.2 | 6 | 3 | 62 | 96 | CL-HFL-11-96 | 184 | 6孔∅10.6锪锥孔 | |
| 47 | 43 | 6.5 | 12.2 | 6 | 3 | 80 | 113 | CL-HFL-11-113 | 264.5 | 6孔∅10.6锪锥孔 | |
