1. Material: 304 stainless steel
2. Surface treatment: CNC machining
3. Opening method: Rotate left 180 °

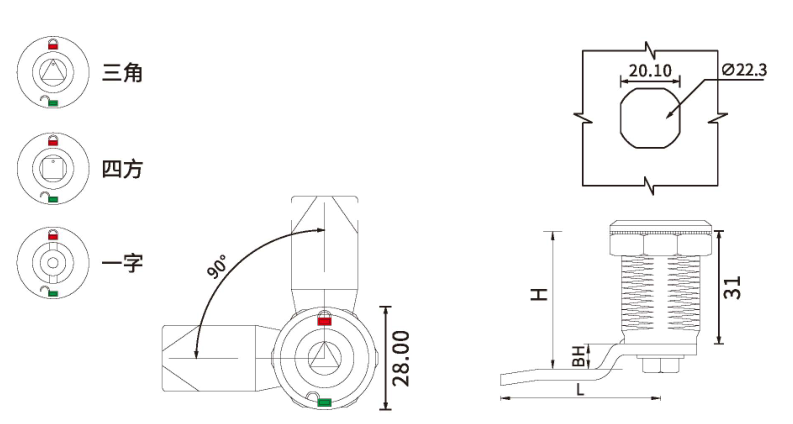

锁片高度选择/Lock tongue height selection
| 型号 Product no. | L(mm) | H(mm） | BH(MM) |
| MS816-31 | 45 | 31 | 4500 |
| 45 | 26 | 反4500 | |
| 45 | 24 | 反4507 | |
| 45 | 24 | 其他可咨询 |
包装规格/Package specification
型号 Product no. | 单重 Weight | 装箱数 pcs | 装箱规格 packing specification |
| 内六角 | 91g | 200 | 33*26*17 |
| 外六角 | 96g | 200 | 33*26*17 |
| 一字槽 | 95.5g | 200 | 33*26*17 |
