KL-MS705-18(点漆)

1.材质:304不锈钢2.表面处理:数控加工、打标、点漆3.打开方式:左旋90°


1. Material: 304 stainless steel

2. Surface treatment: CNC machining, marking, and spot painting

3. Opening method: Rotate left 90 °

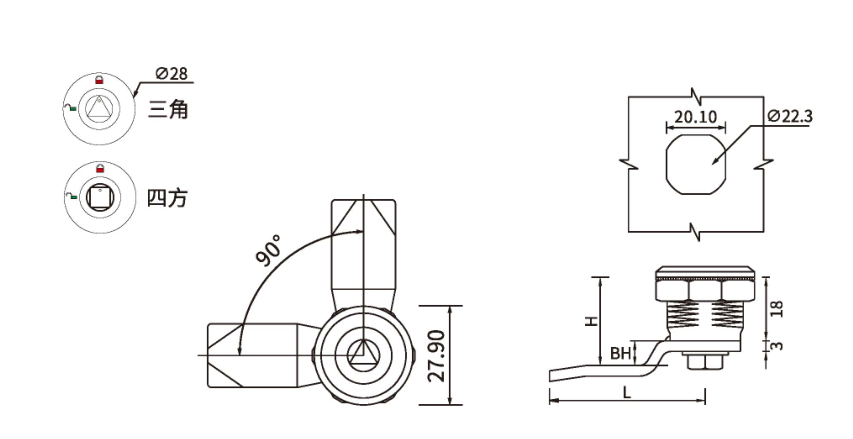

 锁片高度选择/Lock tongue height selection

  型号 Product no.L(mm)H(mm)BH(MM)
MS715-18
45184500
45234505
4525/184507
4525/18其他可咨询
 包装规格/Package specification

  型号

Product no.

单重

Weight

装箱数

pcs

装箱规格

packing specification

MS705-1881g20033*26*17
