1. Material: 304 stainless steel
2. Surface treatment: CNC machining
3. Opening method: Rotate left 90 °

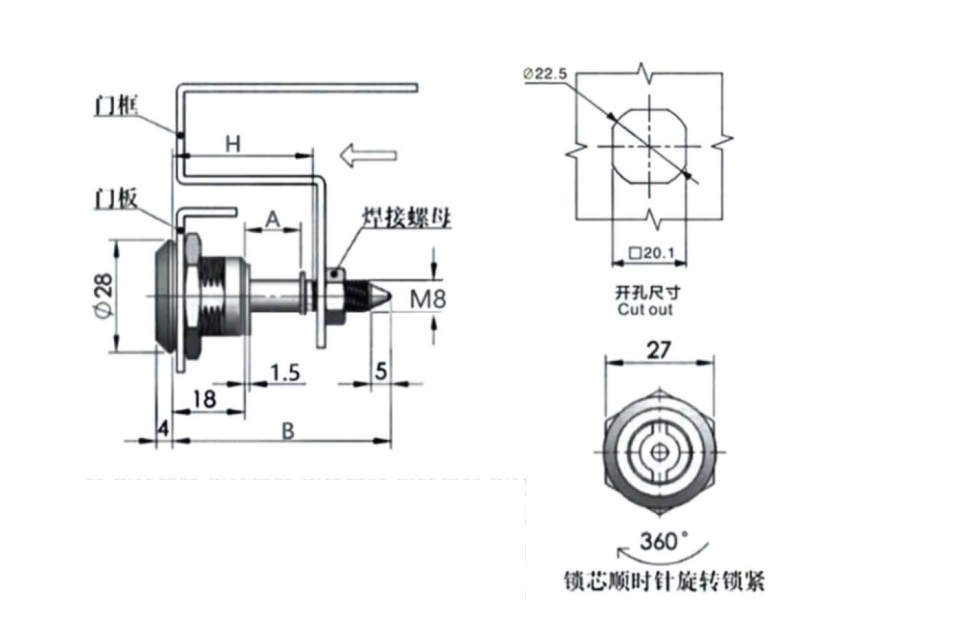

锁片高度选择/Lock tongue height selection
型号 Product no. | A(mm) | H(mm) | B(MM) |
MS704-23 | 2.5 | 23 | 40 |
MS704-28 | 7.5 | 28 | 46 |
MS704-34 | 13.5 | 34 | 54 |
包装规格/Package specification
型号 Product no. | 单重 Weight | 装箱数 pcs | 装箱规格 packing specification |
MS705-30 | 72.8g | 200 | 33*26*17 |
MS705-50 | 76.1g | 200 | 33*26*17 |
MS705-62 | 80.2g | 200 | 33*26*17 |
