KL-MS-90-B

1.材料：PA66材质，锌合金螺母，碳钢锁片2.表面处理：本色黑3.适用门板厚度：1-6MM

PDF下载 2D下载 3D下载


1. Material: PA66 material, zinc alloy nut, carbon steel locking plate

2. Surface treatment: Natural black

3. Applicable door panel thickness: 1-6mm

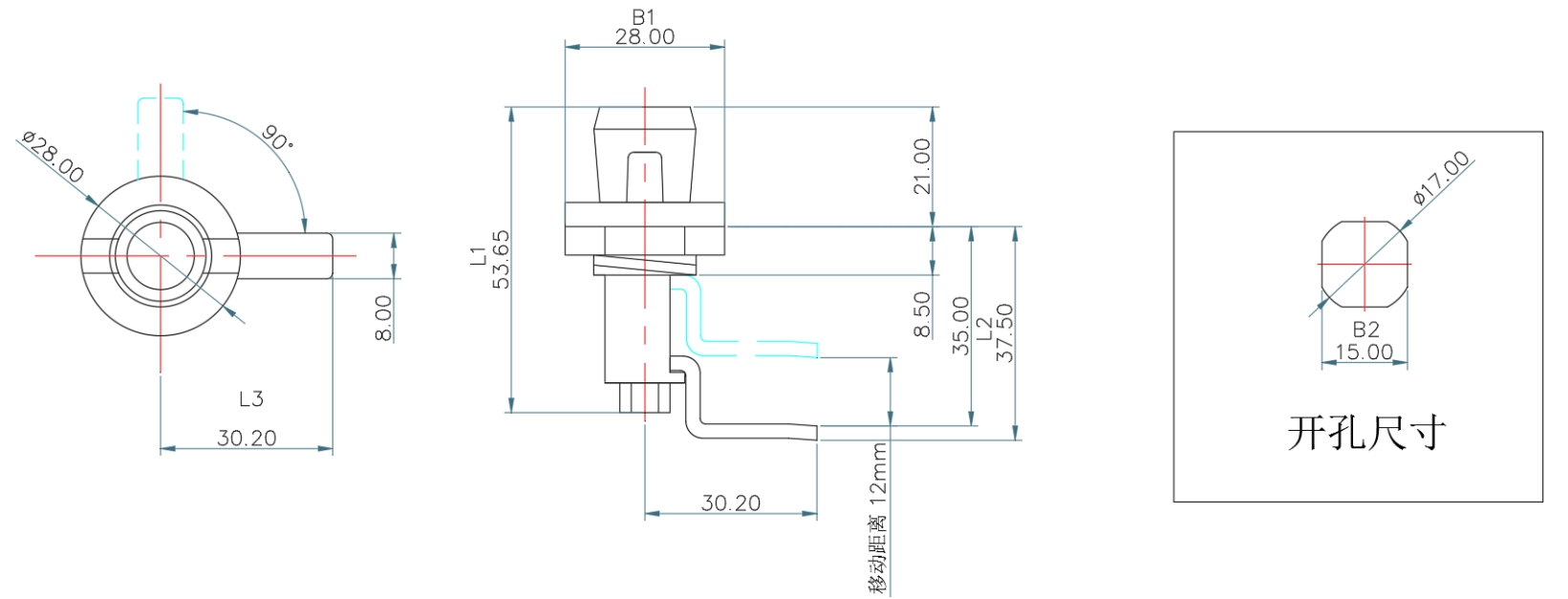

基本尺寸/Basic dimensions

产品名称

Product Model

产品单重

Weight

装箱数

PCS

L1L2L3B1B2MS90-B

53.65
37.530.2
28
15
