KL-MS-414

1.材料：锌合金主体、聚乙烯旋钮、镀锌锁片2.表面处理：喷无光黑、镀亮铬3.结构说明：90°旋转实现开启或锁闭

PDF下载 2D下载 3D下载


1. Material: Zinc alloy body, polyethylene knob, galvanized lock plate

2. Surface treatment: Spray matte black and plated with bright chromium

3. Structural description: 90 ° rotation to achieve opening or locking

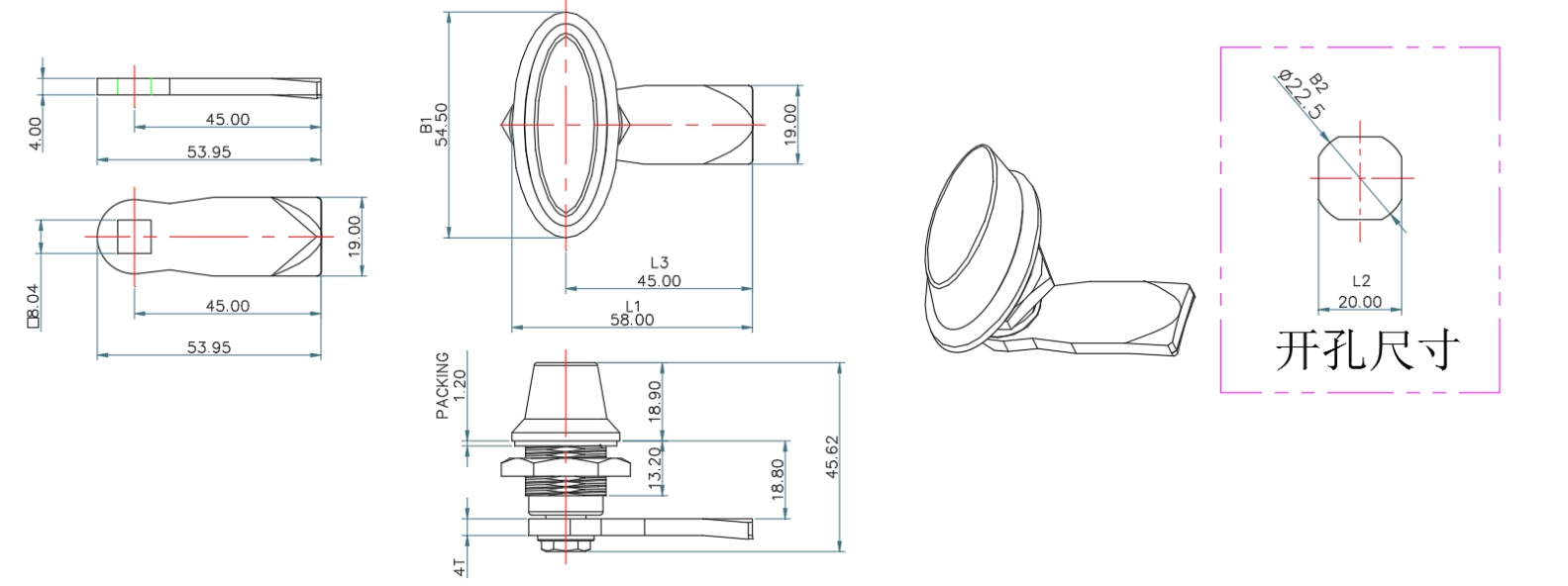

基本尺寸/Basic dimensions

产品品名

Product Model

产品单重

Weight

装箱数

PCS

L1L2L3B1B2MS-41491
200
58204554.5∅22.5
